Trailer Axles

Choosing the right trailer axle is critical to performance, safety, and long-term reliability. Whether you’re hauling equipment, towing an RV, or upgrading an existing trailer, the correct axle ensures proper load support, smooth towing, and even tire wear. With the wide range of axle options available today, finding the right fit starts with understanding your trailer’s specific needs.

When selecting a trailer axle, there are several key factors to consider:

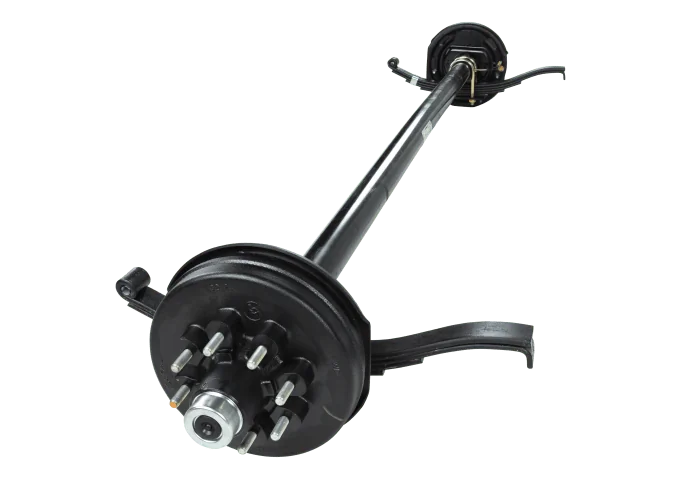

A trailer axle is the main structural component that supports the trailer’s weight and allows the wheels to rotate smoothly. It runs across the trailer frame and connects to the suspension, hubs, wheels, and — on many trailers — brakes.

A trailer axle does three critical jobs:

• Supports load – Carries the weight of the trailer and its cargo, based on its rated capacity.
• Keeps wheels aligned – Maintains proper camber and tracking so tires wear evenly and the trailer tows straight.
• Integrates hubs and brakes – Provides mounting points for wheel hubs, bearings, and braking systems when equipped.

Without the correct axle, a trailer may tow poorly, wear tires prematurely, or fail under load.

If you’re new to trailer axles, these are the terms you’ll see most often when shopping or measuring:

• Hub Face – The distance from the outside face of one wheel hub to the other; determines overall axle width.
• Spring Center – The distance between the centers of the spring seats where leaf springs mount to the axle.
• GAWR (Gross Axle Weight Rating) – The maximum weight a single axle is designed to carry.
• GVWR (Gross Vehicle Weight Rating) – The maximum total weight of the fully loaded trailer (all axles + frame).
• Camber – The slight upward bend built into an axle to keep tires flat on the road under load.
• Spindle – The machined end of the axle where bearings and hubs ride.
  Idler Axle – An axle without brakes; supports weight only.
• Brake Flange – The mounting plate on an axle that allows brake assemblies to be installed.

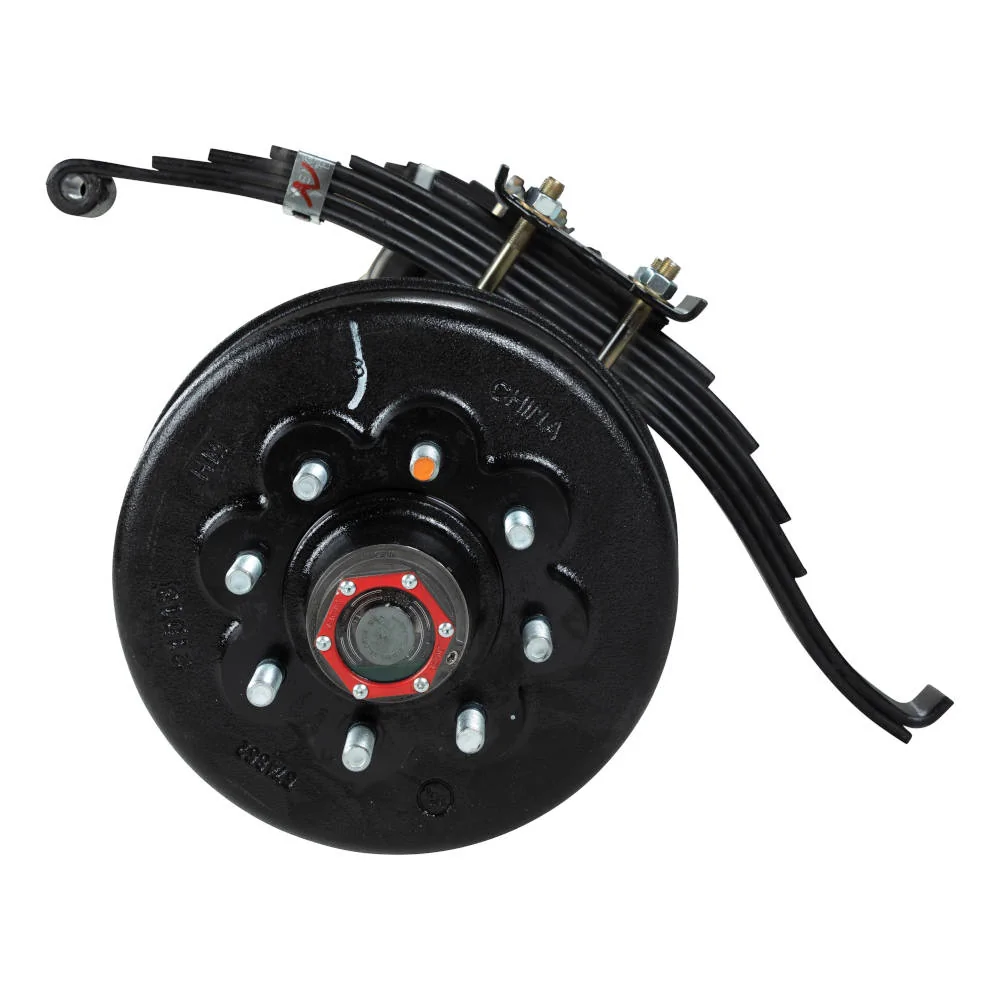

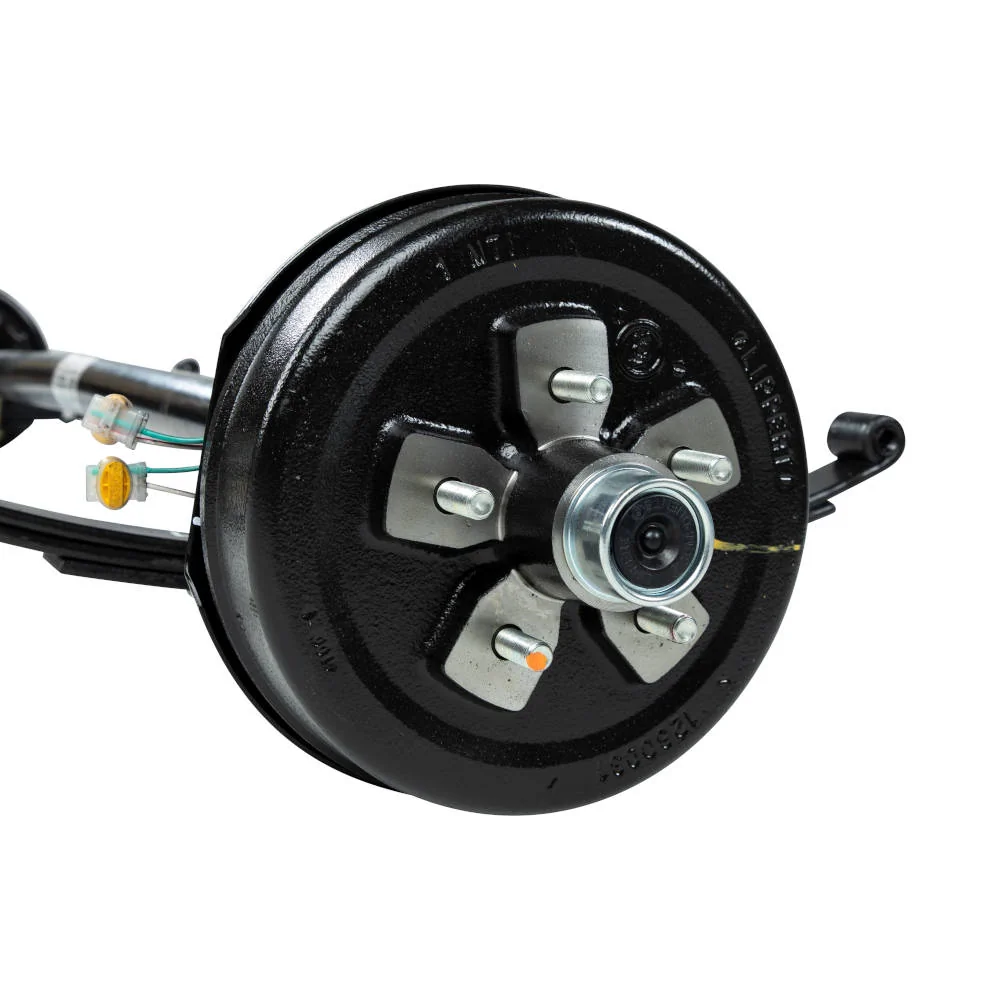

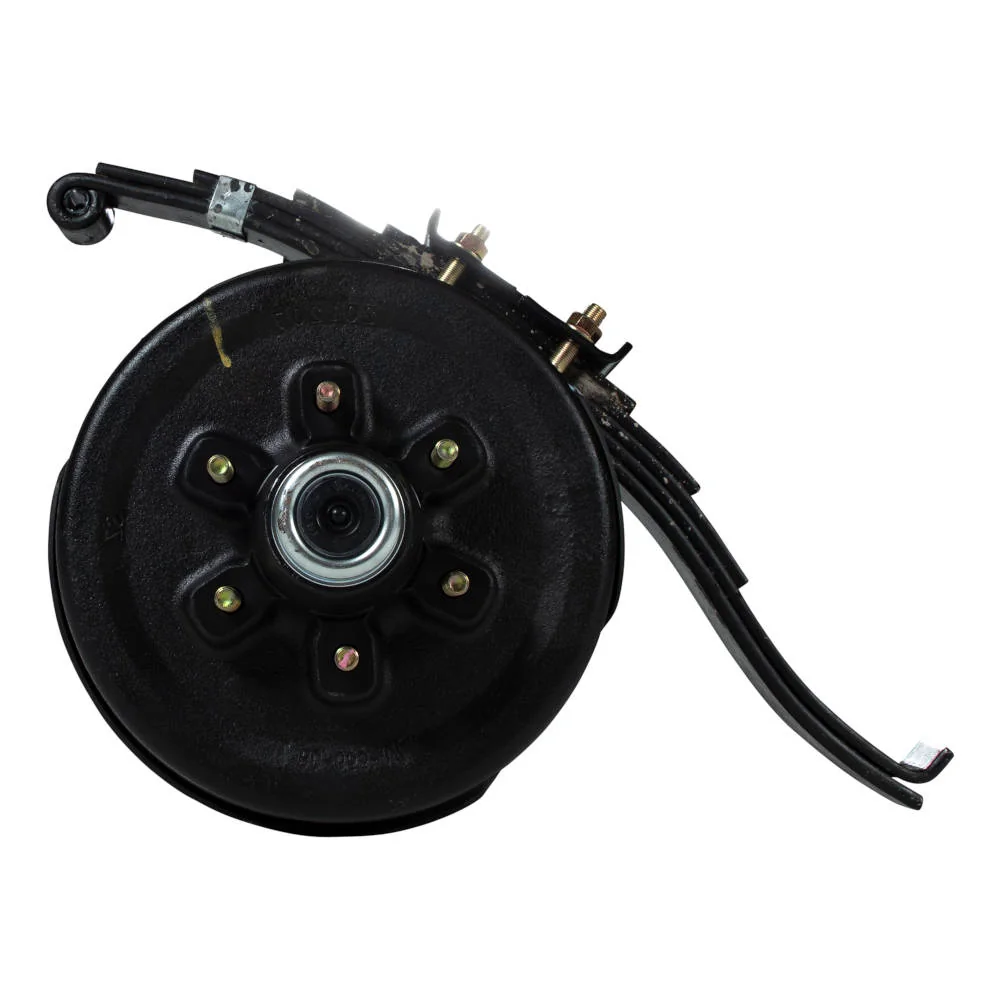

• Bolt Pattern – The number of wheel studs and the diameter of the circle they form (for example, 5 on 4.5").

These terms are essential for choosing a compatible replacement or upgrade.

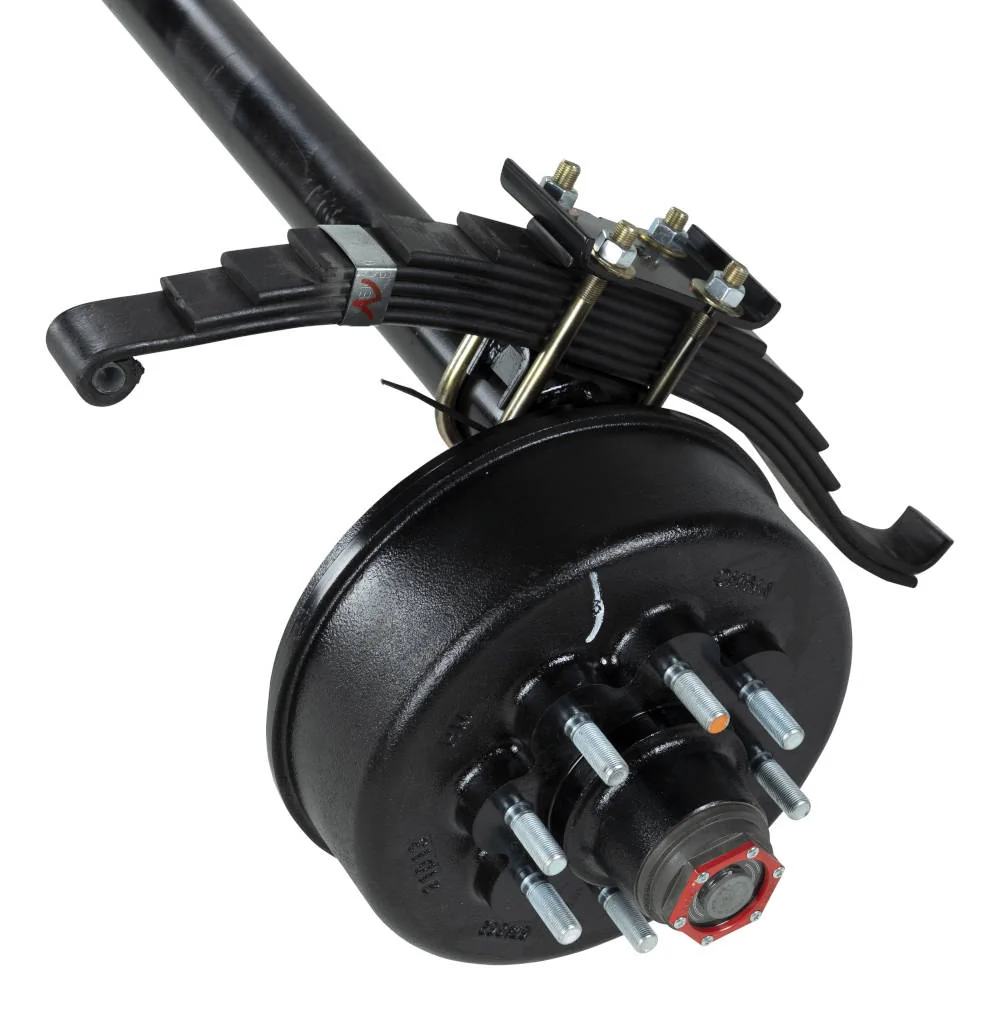

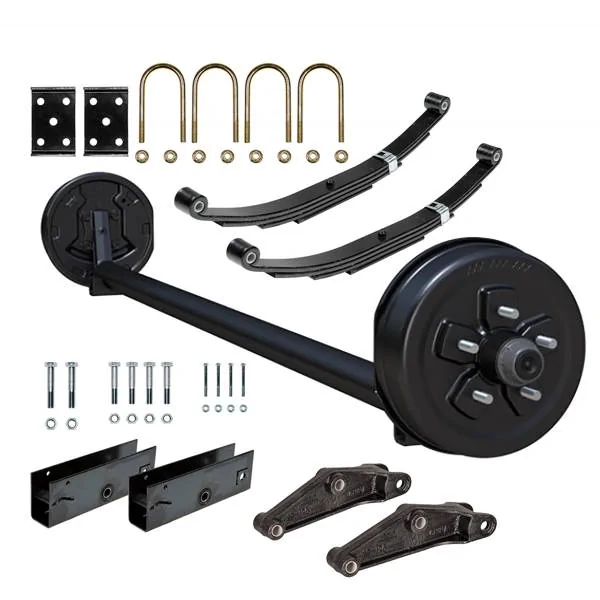

A complete trailer axle kit bundles the major components you need to replace or install an axle with fewer compatibility concerns.

Most trailer axle kits typically include:

• The axle tube / beam (straight or drop, built to a specific capacity)
• Spindles and hubs (with bearings, races, seals, and studs installed)
• Brake assemblies (on brake axles, if applicable)
• Spring seats and basic mounting hardware

Axle kits are designed to simplify ordering, reduce guesswork, and speed up installation — especially for common trailer sizes and capacities.

Shopping tip: If your trailer uses standard measurements and capacities, a quick-ship axle kit is often the fastest and easiest replacement option. For uncommon specs or exact axle-tag matches, a custom axle build may be the better fit.

Trailer axles vary by suspension type, shape, braking, and axle count. The right setup depends on weight, ride quality, and use.

• Spring (leaf) axles: Durable, affordable, and easy to service. Best for utility, cargo, and work trailers.
• Torsion axles: Smoother, quieter ride with fewer external parts. Popular on cargo trailers, boats, and RVs.
• Straight axle: More ground clearance, higher trailer height
• Drop axle: Lower deck height, easier loading, better stability
• Idler axle: No brakes; supports weight only
• Brake axle: Includes electric or hydraulic brakes for safer stopping. Brakes are strongly recommended as trailer weight increases.

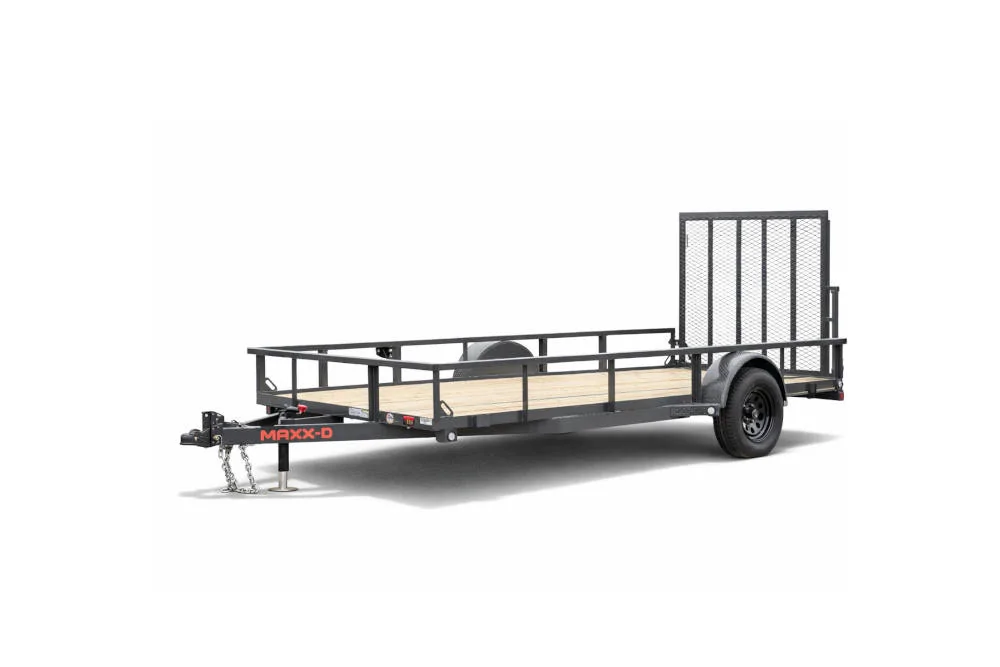

• Single axle: Light-duty, easy to maneuver

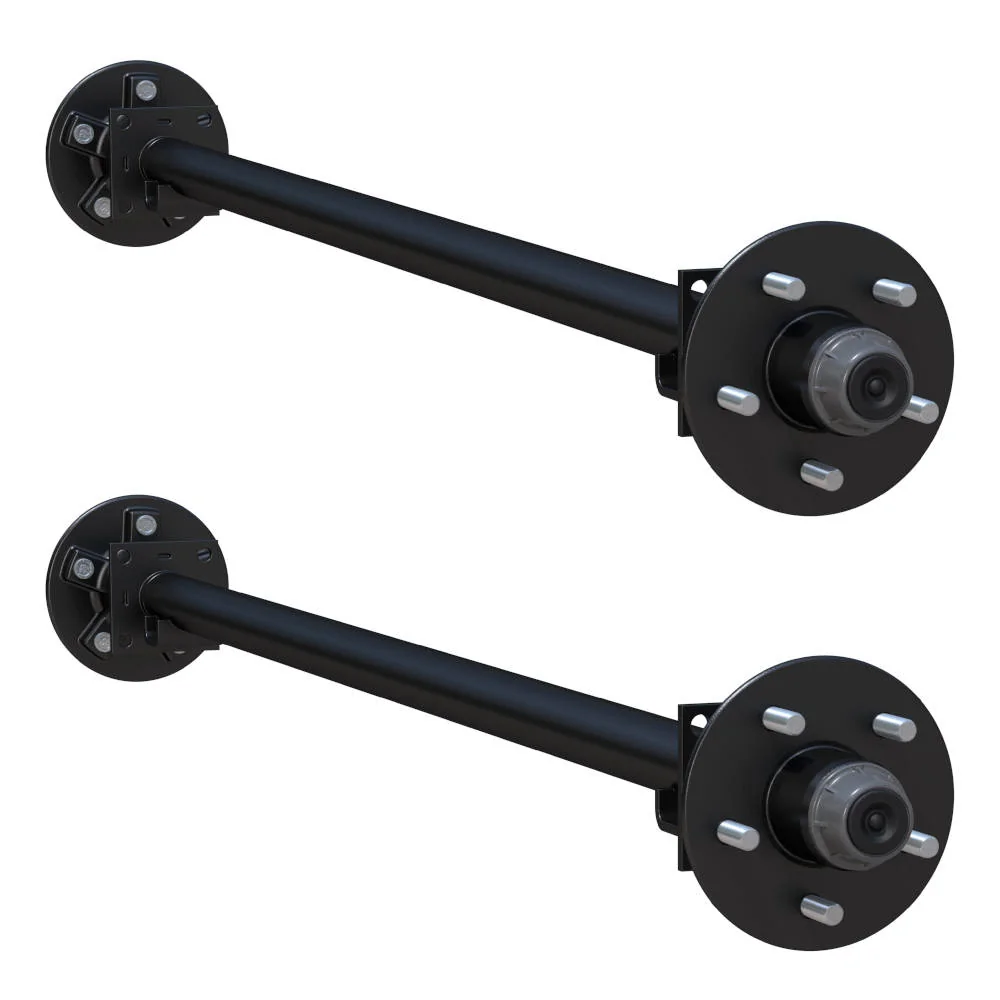

• Tandem axle: Better stability and higher capacity

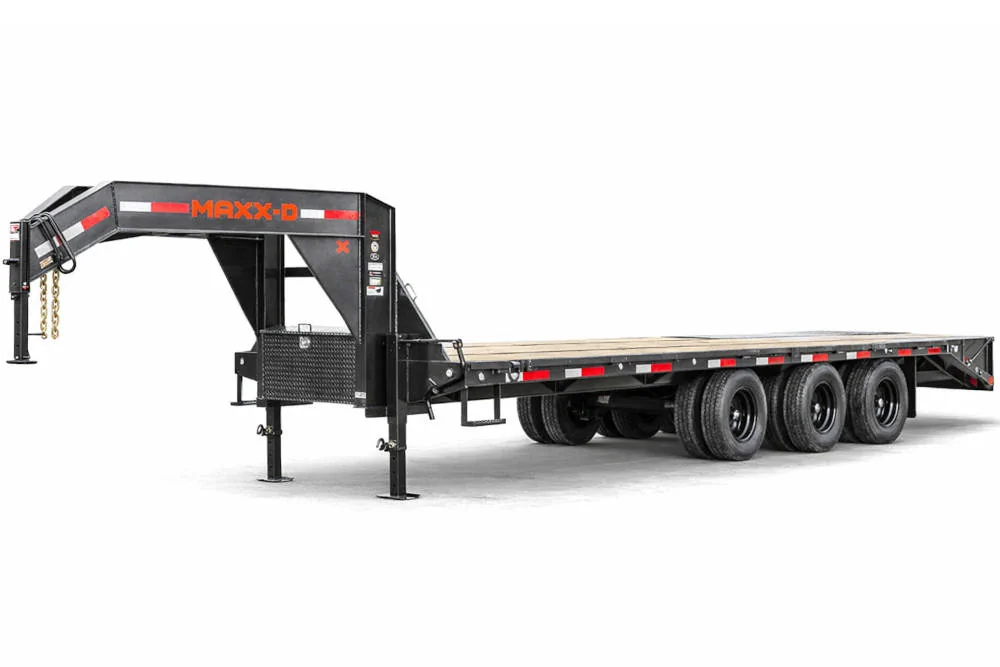

• Triple axle: Maximum load distribution for heavy hauling
