What Is a Gooseneck Pin Box?

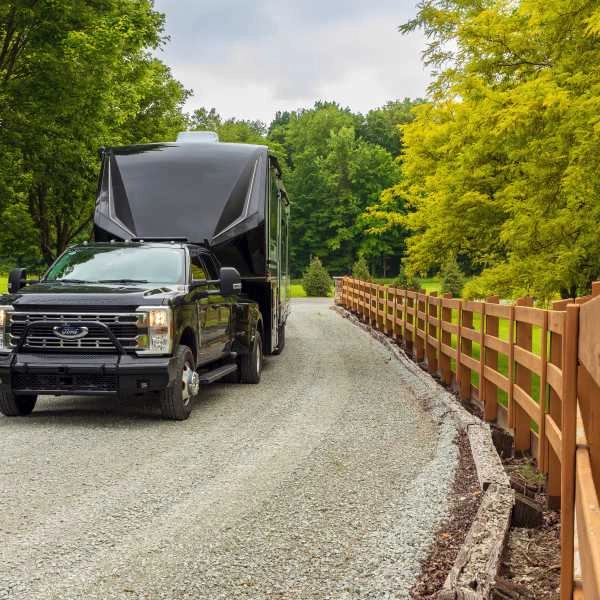

Towing large RVs and trailers requires a secure connection between the trailer and the tow vehicle. For many 5th wheel trailers, that connection happens through a pin box that locks into a 5th wheel hitch mounted in the truck bed. However, some RV owners prefer a different setup that connects to a gooseneck ball instead.

This is where a gooseneck pin box comes into play.

A gooseneck pin box replaces the traditional 5th wheel pin box and allows the trailer to connect directly to a gooseneck hitch ball in the truck bed. The result is a cleaner truck bed, fewer hitch components, and a towing setup that many drivers find simpler to manage.

As more RV owners look for ways to streamline their towing setup, gooseneck pin boxes have become an increasingly popular upgrade.

A gooseneck pin box is a replacement pin box designed to connect a 5th wheel trailer to a gooseneck hitch ball instead of a 5th wheel hitch.

Rather than using the traditional kingpin-to-hitch plate connection, the gooseneck pin box incorporates a coupler that drops onto a 2-5/16" gooseneck ball mounted in the truck bed.

In a typical towing system, the pin box bolts directly to the trailer’s frame using a standardized bolt pattern. A gooseneck pin box uses those same mounting points but replaces the kingpin assembly with a reinforced gooseneck coupler.

These systems are commonly used for:

• 5th wheel RVs converting to a gooseneck-style connection

• Large travel trailers or toy haulers designed for heavier towing

• RV owners who want the bed space advantages of a gooseneck hitch

Because the pin box remains a structural part of the trailer’s frame connection, engineered replacements are designed to manage towing forces safely while maintaining proper geometry between the truck and trailer.

There are several ways a trailer can connect to a gooseneck hitch ball, and not all of them function the same way. While the end goal is similar, the structure, installation method, and how towing forces are transferred to the trailer frame can vary significantly.

Understanding these differences helps RV owners choose a setup that is both compatible with their trailer and designed for long-term towing performance.

Gooseneck Adapter Tubes

Adapter tubes are one of the most common ways people convert a 5th wheel trailer to a gooseneck-style connection. These adapters attach to the existing kingpin on a standard 5th wheel pin box and extend downward to a coupler that connects to the gooseneck hitch ball in the truck bed.

Because the adapter simply clamps or bolts onto the kingpin, installation is typically quick and requires little modification to the trailer. For owners looking for a fast conversion, this type of adapter can seem like an easy solution.

However, adapter tubes also change the geometry of the towing connection. By extending the coupler farther below the original kingpin location, the connection point moves farther away from the trailer frame. This additional leverage can place different forces on the pin box structure and the trailer frame.

For that reason, some trailer manufacturers caution against using kingpin-style adapter tubes, and certain warranties may not cover trailers towed with them. While they can work in some situations, they are not always considered a long-term engineered solution for RV towing.

Traditional Gooseneck Coupler Heads

Purpose-built gooseneck trailers use a completely different design. Instead of adapting a 5th wheel connection, these trailers are manufactured with a gooseneck coupler integrated directly into the trailer’s neck structure.

Livestock trailers, flatbed trailers, horse trailers, and heavy equipment haulers commonly use this configuration. The coupler sits at the end of a long neck that extends over the truck bed and drops down to meet the hitch ball.

These couplers use a ball-and-socket connection, where the coupler latches securely around the hitch ball. The structure of the trailer neck is engineered to handle the vertical load, braking forces, and side-to-side movement that occur during towing.

Because this design is built directly into the trailer frame, the load paths and stress distribution are accounted for during the original engineering of the trailer. This makes traditional gooseneck couplers ideal for trailers specifically designed for that style of towing.

Gooseneck Pin Boxes

A gooseneck pin box takes a different approach. Rather than adapting the kingpin with an extension or redesigning the entire trailer neck, the pin box itself is replaced with a purpose-built component that includes an integrated gooseneck coupler.

The new pin box bolts to the same mounting points used by the factory 5th wheel pin box. Because it uses the existing bolt pattern and frame attachment points, installation can often be done without modifying the trailer frame.

Unlike adapter tubes that hang below the kingpin, the coupler is integrated into the body of the pin box. This allows the connection to remain closer to the trailer’s original load path and helps maintain more consistent structural alignment with the frame.

As a result, gooseneck pin boxes are often considered a more refined conversion solution than bolt-on kingpin adapters. They are designed to handle towing forces through the pin box structure itself rather than relying on an extended adapter arm.

For RV owners who want the truck bed flexibility of a gooseneck hitch while maintaining a purpose-built towing component, a gooseneck pin box provides a balanced solution between traditional 5th wheel systems and full gooseneck trailer designs.

Although both components serve the same purpose, connecting the trailer to the truck while transferring the trailer’s pin weight into the tow vehicle, they do so through fundamentally different mechanical systems. Those differences influence everything from truck bed usability to hookup procedure, ride characteristics, and long-term maintenance.

Understanding how each system works helps RV owners make a more informed decision when evaluating a potential conversion.

1.) Connection Style

A traditional 5th wheel pin box uses a kingpin that locks into a 5th wheel hitch mounted in the truck bed. The hitch itself contains a set of jaws that clamp around the kingpin and a large hitch plate that supports the trailer’s vertical load. The trailer pivots on that plate as the truck turns, allowing smooth articulation between the two vehicles.

A gooseneck pin box, by contrast, replaces the kingpin interface with a coupler designed to connect directly to a 2-5/16" gooseneck hitch ball. Instead of locking into a plate-style hitch, the coupler drops over the ball and latches in place, creating a ball-and-socket style connection similar to what is used on traditional gooseneck equipment trailers.

While both systems are capable of supporting heavy trailers, the physical connection hardware is very different. 5th wheel systems rely on a large hitch assembly that engages the kingpin from below, while gooseneck systems rely on a compact ball mounted directly to the truck’s frame.

2.) Truck Bed Layout

One of the most noticeable differences between the two systems is how much space they occupy in the truck bed.

A typical 5th wheel hitch can weigh anywhere from 100 to 200 pounds and usually sits on mounting rails or a puck system attached to the truck frame. Even removable models often require significant effort to lift out of the truck. When the hitch is installed, it occupies a large portion of the bed and limits the ability to haul cargo.

A gooseneck hitch, on the other hand, uses a single hitch ball mounted in the center of the truck bed. Many modern gooseneck hitches use flip-over or removable balls that sit flush with the bed when not in use. Once the ball is removed or flipped down, the truck bed becomes completely usable again.

For RV owners who also use their truck for work or hauling equipment, this difference can be a major factor in choosing a gooseneck-style setup.

3.) Driving Feel

Both connection types are known for providing stable towing because the pivot point sits over the truck’s rear axle rather than behind it, as with bumper-pull trailers.

With a 5th wheel hitch, the trailer pivots on the hitch plate. The plate allows side-to-side articulation and front-to-back movement while distributing load across a relatively large surface area. This plate-style connection can create a very smooth towing experience when properly lubricated and adjusted.

With a gooseneck connection, the pivot point is the hitch ball itself. The coupler rotates around the ball in multiple directions, allowing the truck and trailer to articulate naturally as they move through turns, uneven terrain, or changes in grade.

The overall towing stability between the two systems is generally comparable, but the feel can differ slightly because of the different pivot mechanisms and connection geometries.

4.) Weight Distribution

Both 5th wheel and gooseneck systems are designed to place the trailer’s pin weight directly over the truck’s rear axle. This is one of the reasons both setups are widely used for heavy trailers.

Positioning the load over the axle improves stability, braking performance, and weight balance compared to bumper-pull trailers, which place the load behind the axle.

However, the exact geometry of the connection differs slightly between systems. 5th wheel hitches rely on the height of the hitch plate and kingpin location, while gooseneck connections rely on the ball height and coupler design.

Because of these differences, maintaining proper ride height and level trailer alignment becomes important when converting between systems.

5.) Maintenance Requirements

Maintenance is another area where the two systems differ.

A 5th wheel hitch typically requires periodic lubrication of the hitch plate to reduce friction between the plate and the kingpin box. Many owners apply grease to the plate surface or use a lube plate to keep the connection operating smoothly. The locking jaws inside the hitch also need occasional inspection and cleaning to ensure reliable operation.

A gooseneck ball system usually involves fewer components. The primary connection point is the hitch ball and coupler latch mechanism. Because there is no sliding plate surface, routine greasing is often minimal compared to a 5th wheel setup.

However, the coupler mechanism still needs periodic inspection to ensure it latches securely and remains free of debris or corrosion.

6.) Compatibility

Compatibility is one of the most important considerations when comparing these systems.

5th wheel trailers are designed with a specific pin box bolt pattern and frame structure intended to support the original kingpin connection. When switching to a gooseneck-style connection, the replacement pin box must be designed to work with that existing structure.

Not all trailers are approved for gooseneck-style towing, especially when using simple kingpin adapters. Before converting, it is important to confirm:

• The trailer’s existing pin box model

• Bolt pattern compatibility

• Weight ratings

• Manufacturer recommendations

Using a properly engineered gooseneck pin box designed for RV use helps ensure the trailer frame continues to handle towing forces safely.

Advantages of Gooseneck Pin Boxes Over Traditional 5th Wheel Pin Boxes

For many RV owners, the appeal of a gooseneck pin box comes down to practicality. While 5th wheel systems have been the traditional solution for RV towing, gooseneck-style connections offer several advantages that make them attractive for certain towing setups.

Greater Truck Bed Flexibility

One of the biggest benefits of switching to a gooseneck-style connection is the ability to reclaim the truck bed when the trailer is not attached.

Most gooseneck hitches use a removable or flip-over ball mounted in the center of the bed. When the ball is removed or flipped down, the bed becomes completely flat and unobstructed. This allows the truck to be used for hauling pallets, tools, building materials, or recreational gear without removing a large hitch assembly.

For truck owners who use their vehicle for both towing and work, this added flexibility can be a major advantage.

Simpler Hookups for Many Drivers

Hooking up a 5th wheel trailer requires aligning the kingpin with the hitch plate and backing the truck into position so the kingpin slides into the locking jaws. While experienced drivers become comfortable with the process, it still requires careful alignment and visual confirmation that the jaws have fully engaged.

With a gooseneck connection, many drivers find the process more straightforward. The coupler simply drops onto the hitch ball and locks in place. Because the ball is visible in the center of the truck bed, some drivers feel it is easier to align during the hookup process.

Although both systems are reliable when used properly, the visual simplicity of a ball-and-coupler connection can feel more intuitive to some users.

Less Bulky Equipment

5th wheel hitches are large pieces of hardware. Even removable versions can weigh well over 100 pounds and often require two people to remove safely.

Gooseneck systems rely on a much smaller set of components. The hitch ball itself is compact, and the supporting structure sits below the truck bed attached to the frame.

Because of this design, the visible hardware inside the bed is minimal compared to a traditional 5th wheel hitch.

Better Bed Cargo Access

With a 5th wheel hitch installed, cargo space in the bed can become limited. Large items may need to be maneuvered around the hitch assembly, and certain loads simply cannot fit while the hitch is in place.

A gooseneck ball setup eliminates this issue. Once the ball is removed or flipped down, the entire bed surface becomes usable again.

For contractors, farmers, or RV owners who regularly haul equipment or supplies, this added accessibility can make a significant difference in day-to-day truck use.

Reduced Hardware to Maintain

Fewer exposed components generally means fewer parts that require routine maintenance.

A 5th wheel hitch contains several moving parts, including the hitch plate, locking jaws, and release mechanisms. These components need periodic inspection and lubrication to maintain smooth operation.

Gooseneck systems are mechanically simpler. While the coupler still requires inspection and proper latching, the overall system has fewer moving parts exposed in the truck bed.

Enhanced Maneuverability

Both 5th wheel and gooseneck systems allow tight turning compared to bumper-pull trailers, but the ball-style connection of a gooseneck can offer slightly greater articulation in certain situations.

Because the coupler pivots around the hitch ball, it can accommodate a wide range of motion as the truck and trailer move across uneven terrain or sharp turns.

This flexibility can be helpful when maneuvering in tight campgrounds, navigating job sites, or backing into confined spaces.

Things to Consider Before Upgrading to a Gooseneck Pin Box

Switching from a 5th wheel setup to a gooseneck configuration can provide several benefits, but it is important to evaluate the towing setup carefully before making the change. Several technical factors should be reviewed to ensure the new configuration is safe and compatible with the trailer.

Trailer Frame Rating

The trailer’s frame is designed to handle specific load paths and towing forces. Some manufacturers approve gooseneck-style connections when using engineered replacement pin boxes, while others recommend sticking with traditional 5th wheel hitches.

Before upgrading, it is wise to review the trailer manufacturer’s documentation or confirm whether a gooseneck pin box is compatible with the frame design.

Truck Towing Capacity

The tow vehicle must be rated to handle the trailer’s gross trailer weight as well as the vertical pin weight transferred through the hitch.

Gooseneck hitch systems typically have their own weight ratings that must also be considered. The truck, hitch, and pin box all need to be matched appropriately to the trailer’s weight.

Verifying these ratings ensures the entire towing system operates within its intended limits.

Hitch Ball Height

Ride height plays a major role in towing stability.

When the trailer is connected, the truck and trailer should sit as level as possible. If the ball height is too high or too low, the trailer may tow nose-up or nose-down, which can affect weight distribution across the trailer axles.

Adjusting the pin box mounting position or ball height may be necessary to achieve proper alignment.

Clearance Requirements

Adequate clearance is essential to avoid contact between the truck and trailer during turns or uneven terrain.

Several clearances should be checked before towing:

• Distance between the trailer and truck cab

• Bed rail clearance above the truck bed sides

• Tailgate clearance when hitching and unhitching

Ensuring proper clearance helps prevent damage during sharp turns or when traveling over uneven ground.

Ride Quality Expectations

Changing the connection style can slightly alter how road forces are transmitted between the truck and trailer.

Some pin boxes incorporate cushioning systems designed to absorb vibration and reduce the impact of bumps or road irregularities. These systems can improve comfort and reduce stress on the trailer frame and tow vehicle.

When evaluating a gooseneck pin box upgrade, it is worth considering whether the model includes features designed to enhance ride quality.

Trailer Design

Finally, it is important to recognize that some trailers were engineered specifically around a 5th wheel hitch. While many trailers can safely use a gooseneck pin box replacement, confirming compatibility with the existing frame structure and pin box mounting pattern is essential. Taking the time to verify these details helps ensure the new towing configuration performs safely and reliably over the long term.

Features to Look for in a High-Quality Gooseneck Pin Box

Not all gooseneck pin boxes are built the same. Several features can make a noticeable difference in durability and towing comfort.

• Shock-Absorbing Technology: Cushioning systems can help reduce vibration and road shock transmitted between the trailer and truck.
• Heavy-Gauge Steel Construction: Thicker steel improves strength and long-term durability under heavy towing loads.
• Corrosion-Resistant Finishes: Protective coatings help prevent rust and extend the lifespan of the pin box.
• Maintenance-Friendly Design: Accessible components and durable materials simplify long-term upkeep.
• Quiet Towing Operation: Well-engineered connection systems help minimize rattling and movement while towing.
• Secure Ball Coupler: A properly designed coupler provides a confident connection to the gooseneck ball.
• OEM Replacement Compatibility: Direct-fit designs that match common RV pin box bolt patterns simplify installation.

Why Upgrade to the Helux Gooseneck Pin Box

For RV owners looking to convert from a 5th wheel connection to a gooseneck setup, the Helux gooseneck pin box offers a purpose-built solution designed specifically for RV towing. Rather than adapting an existing pin box with an external attachment, Helux replaces the factory pin box entirely with an engineered assembly built around a gooseneck-style connection.

This approach matters because the pin box is a structural component of the trailer’s front frame. It manages vertical pin weight, braking forces, and the dynamic loads that occur while traveling over uneven roads. By integrating the coupler directly into the body of the pin box, Helux maintains a cleaner load path between the trailer frame and the hitch ball. The result is a conversion solution that is designed from the ground up for RV towing rather than relying on add-on hardware.

Another advantage of a direct-replacement design is installation compatibility. Helux is built to align with common RV pin box mounting patterns, allowing many trailers to upgrade without modifying the trailer frame. Instead of stacking multiple components together, the original pin box is removed and replaced with a single integrated system.

A Purpose-Built Gooseneck Conversion

One of the biggest concerns when converting a 5th wheel trailer to a gooseneck connection is preserving proper towing geometry. The relationship between the trailer frame, the pin box, and the truck’s hitch point affects how forces move through the towing system.

Because the Helux pin box is engineered as a replacement component, the coupler position and structural design are built with that geometry in mind. This helps keep the connection point closer to the trailer’s original load path compared to extended kingpin adapters that hang below the factory pin box.

For RV owners who want the truck bed flexibility of a gooseneck hitch without introducing unnecessary leverage into the system, this integrated design provides a more refined solution.

Clean Truck Bed and Simple Hookups

One of the most noticeable benefits of switching to a gooseneck-style connection is the effect it has on the truck bed.

Traditional 5th wheel hitches are large assemblies that occupy a significant portion of the bed when installed. Even removable versions often require lifting out a heavy hitch assembly to regain full cargo space.

With a gooseneck system, the only visible component in the bed is the hitch ball. Many modern gooseneck hitches use flip-over or removable balls that sit flush with the bed when not in use. Once the ball is removed, the truck bed becomes fully usable again.

Helux makes it possible to take advantage of this setup while towing a 5th wheel RV. Drivers who use their truck for both towing and everyday hauling often appreciate the ability to keep the bed clear when the trailer is not attached.

The hookup process also becomes straightforward. Instead of backing into a hitch plate and engaging locking jaws around a kingpin, the trailer’s coupler simply drops over the hitch ball and latches into place. Many drivers find the ball-style connection intuitive and easy to verify visually during the hookup process.

Durable Construction for RV Towing

RV trailers can place substantial loads on the pin box assembly, especially during braking, acceleration, and rough road conditions. A well-designed pin box must be able to handle these forces consistently over thousands of miles of travel.

Helux is designed as a heavy-duty structural component intended for the demands of RV towing. Its construction focuses on strength, durability, and long-term reliability under the dynamic conditions experienced on the road.

Because the pin box is one of the primary load-bearing components at the front of the trailer, this type of robust design helps ensure the towing system continues to perform as expected over time.

Compatibility With Common RV Pin Box Mounts

Most modern 5th wheel trailers use standardized pin box mounting patterns. These standardized bolt patterns make it possible to replace factory pin boxes with alternative designs that offer different features or connection styles.

Helux is designed to work with many of these common mounting configurations, making it a practical upgrade option for a wide range of RV trailers. By aligning with existing mounting points, installation can often be completed without structural modification to the trailer frame.

As with any towing component, verifying the trailer’s existing pin box model and weight ratings remains an important step before upgrading.

A Purpose-Built Alternative to Temporary Adapters

Many RV owners explore gooseneck towing through kingpin adapter tubes that attach to an existing pin box. While those adapters can provide a quick conversion, they add an additional component to the system and shift the connection point farther from the trailer frame.

Helux takes a different approach by replacing the pin box entirely with a system designed for the job. Instead of adapting the original connection, it integrates the gooseneck coupler directly into the structural assembly.

For RV owners who want the flexibility of a gooseneck hitch while maintaining a purpose-built towing component, the Helux pin box offers a dedicated upgrade path.

If you are considering converting your 5th wheel trailer to a gooseneck-style connection, learning more about the Helux gooseneck pin box and confirming compatibility with your trailer is a good place to start.
