Understanding the Parts of a Trailer Axle

A trailer axle may look simple from the outside, but it is a collection of precisely engineered components that support the weight of your trailer, allow your wheels to rotate smoothly, and help maintain control on the road. Understanding these parts gives you a better sense of how your trailer works, how to maintain it, and when a component may need service or replacement.

This guide breaks down every major part of a trailer axle assembly. You will learn what each component does, how it connects with the rest of the system, and what variations you might find across different trailer types, including both torsion axles and spring axles.

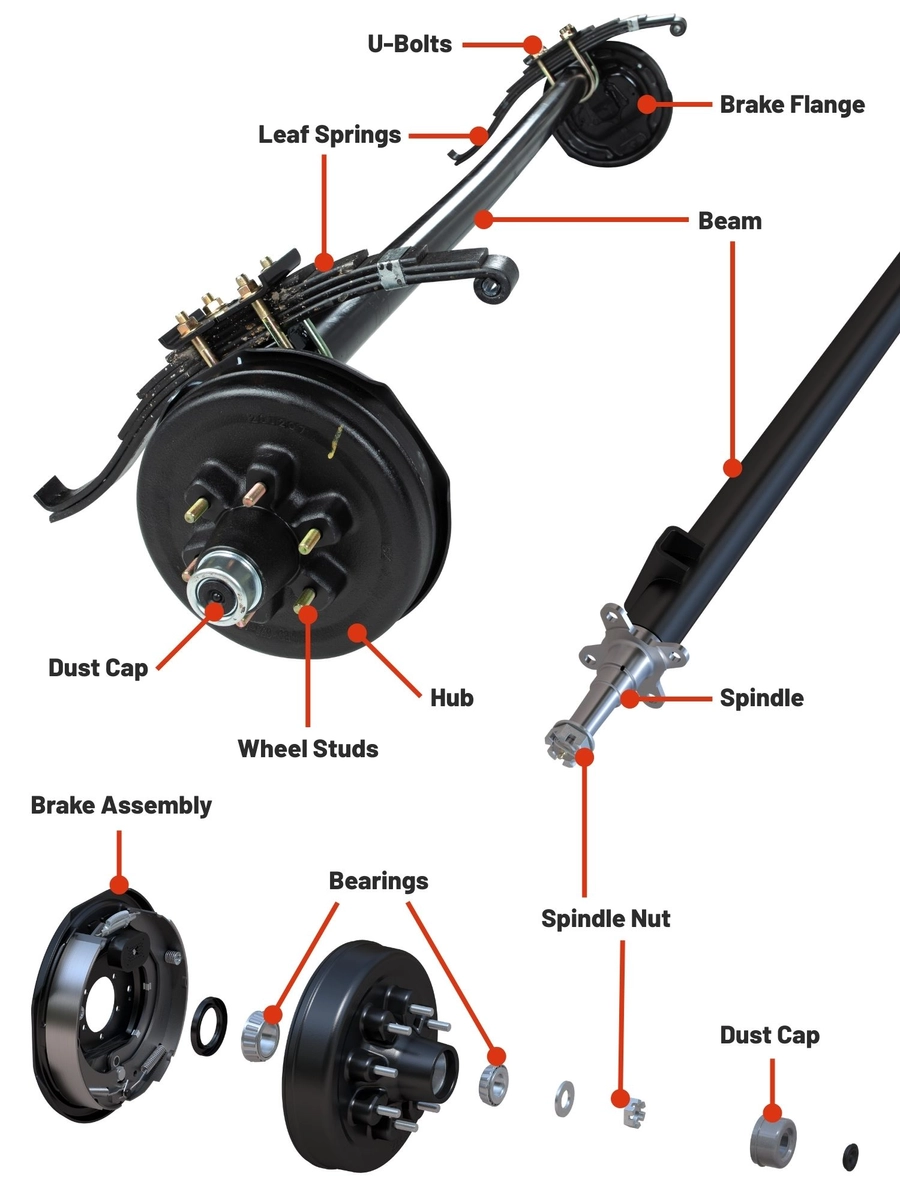

Here are the parts we'll cover:

• Axle Beam
• Spindles
• Hubs
• Wheel Studs
• Lug Nuts
• Brake Assembly
• Bearings
• Races
• Spindle Washers
• Grease / Oil Seals
• Castle Nuts
• Dust Caps
• Wheels
• Tires
• Hanger Brackets
• Torsion Arms
• Leaf Springs
• Equalizers
• Other Suspension Components

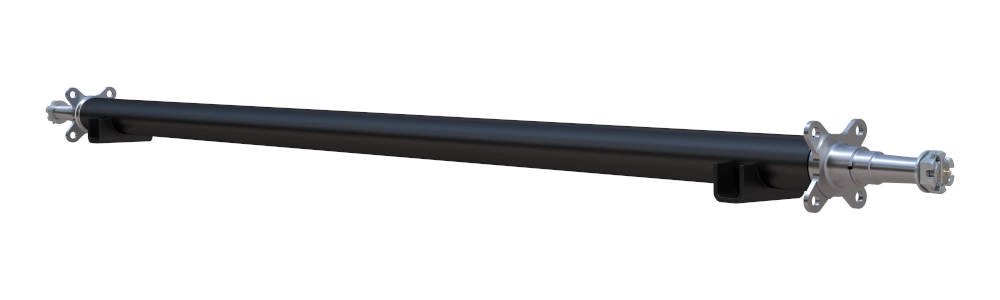

The trailer axle beam is the backbone of the trailer’s running gear. It spans the width of the trailer and carries the load transferred through the suspension.

Purpose: Support the trailer weight and provide a mounting point for the spindles.

Interaction: The spindles are welded or integrated onto each end of the beam. The beam connects to the suspension through hangers, leaf springs, or torsion arms, depending on the axle style.

Variations:

• Round axle tubes, common on light and medium-duty trailers
• Square axle tubes, often seen on torsion axles because they provide stable mounting points for torsion arms
• Straight or drop axles, which either maintain the same centerline height across the tube (straight) or lower the trailer frame for easier loading (drop)

The axle beam is the main structural backbone of a trailer axle, designed to support the trailer’s weight while maintaining proper alignment between the wheels. Typically manufactured from high-strength steel, the axle beam spans from one wheel end to the other and houses or supports critical components like spindles, brake assemblies, and suspension mounts.

Axle beams most commonly come in round or square profiles, with round beams often favored for torsional strength and square beams used where suspension attachment or clearance is a priority. They’re available in a wide range of diameters and wall thicknesses, which directly correlate to load capacity — light-duty trailer axle beams may support 2,000 lbs and 3,500 lbs, while heavy-duty options can exceed 7,000 lbs or more per axle. Axle beams can also be straight or cambered, with camber built in to ensure the wheels sit flat under load, improving tire wear and stability.

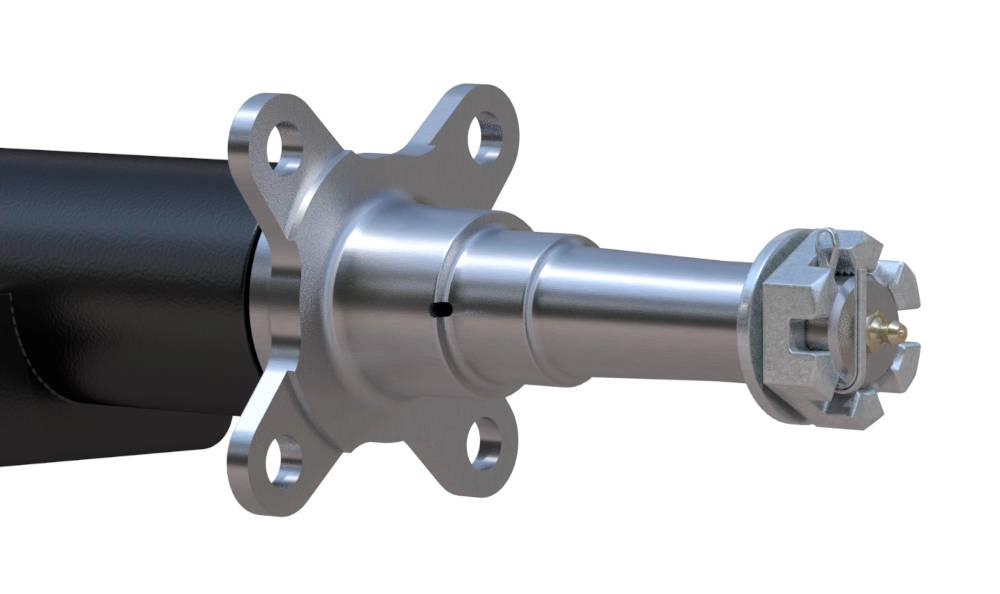

Spindles extend from each end of the axle beam. They support the hubs, bearings, and wheel assemblies.

Purpose: Provide a rotating surface for the wheel hub and bearing assembly.

Interaction: Hubs slide over the spindle. Bearings ride on the spindle’s machined surfaces. The spindle threads hold the washer and castle nut in place.

Variations:

• Straight spindles, used on many utility trailers
• Drop spindles, designed to lower the trailer’s ride height
• Easy-lube spindles, which allow grease to be added through a zerk fitting
• Torsion axle spindles, integrated into the torsion arm instead of the axle tube

Trailer axle spindles are the machined ends of the axle where the wheel hub, bearings, and grease seal are mounted, making them critical to both load support and smooth wheel rotation. Typically forged or machined from hardened steel, spindles are either integrated into the axle beam or welded on as separate components, depending on axle design and capacity.

A standard trailer spindle features multiple bearing surfaces — commonly referred to as the inner bearing journal, outer bearing journal, seal surface, and threaded end — each precisely sized to accept specific bearing and seal combinations.

Spindles vary widely by capacity and application, with light-duty spindles supporting smaller bearings for utility trailers and heavy-duty spindles engineered for larger bearings capable of handling 5,200-lb, 6,000-lb, 7,000-lb axles and beyond. Variations also include straight spindles, drop spindles, and brake-compatible spindles designed to accommodate electric or hydraulic brake assemblies.

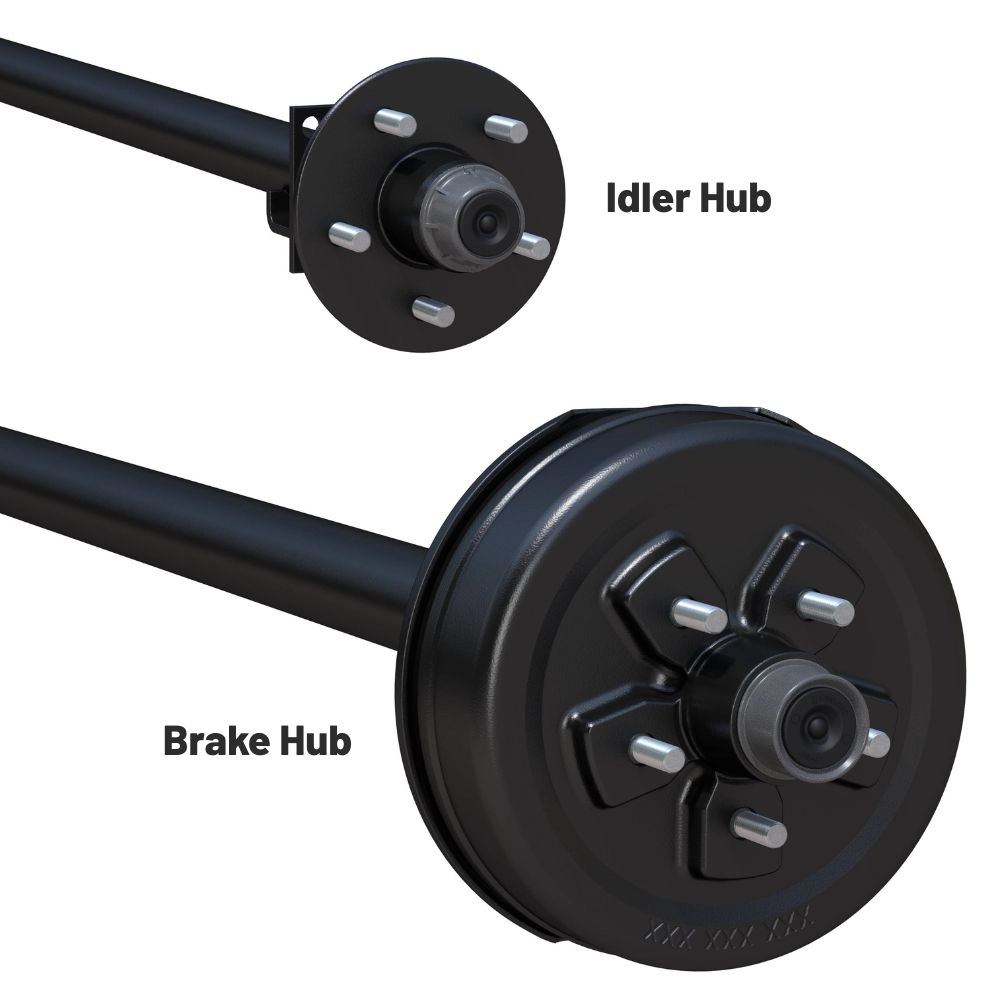

The hub is the center component of the wheel assembly. It mounts the wheel and houses the bearings that let the wheel spin freely.

Purpose: Hold the wheel in place and enable smooth rotation through the bearing system.

Interaction: The hub fits onto the spindle, supported by inner and outer bearings and sealed by a grease or oil seal. Wheel studs are pressed into the hub, and lug nuts secure the wheel.

Variations:

• Idler hubs, which do not include brake components
• Hub and drum assemblies, which incorporate drum brakes
• Hub and rotor assemblies, found on trailers with disc brakes

Trailer hubs are the rotating components that mount to the spindle and allow the wheels to turn smoothly while supporting the trailer’s weight. Inside each hub are the inner and outer wheel bearings, grease or oil lubrication, and a grease seal, all working together to reduce friction and manage heat during towing.

Trailer hubs are commonly available in idler hubs (for axles without brakes) and brake hubs or hub-and-drum assemblies (designed to integrate with electric or hydraulic brake systems). They also vary by bolt pattern, bearing size, and weight capacity, with light-duty hubs typically rated for 2,000-lb axles or 3,500-lb axles and heavy-duty hubs engineered for 5,200-lb, 6,000-lb, 7,000-lb axles and higher. Additional variations include grease-lubricated vs. oil-bath hubs, as well as enhanced designs like EZ Lube®–style hubs that simplify maintenance.

Choosing the correct trailer hub is essential for proper bearing fitment, reliable braking performance, correct wheel compatibility, and long-term towing safety.

Learn more about trailer hub replacement

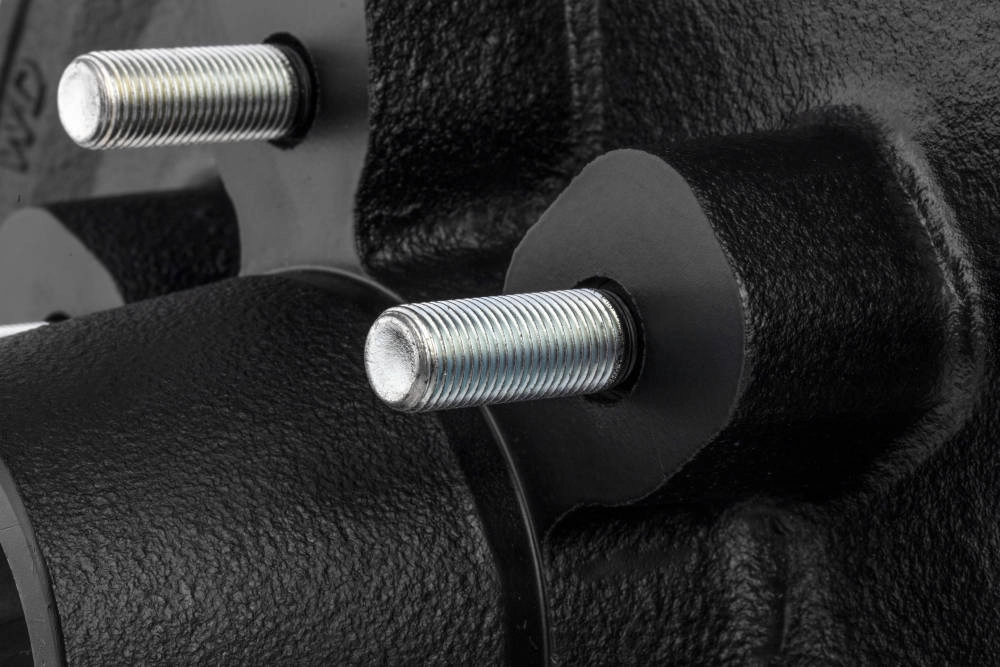

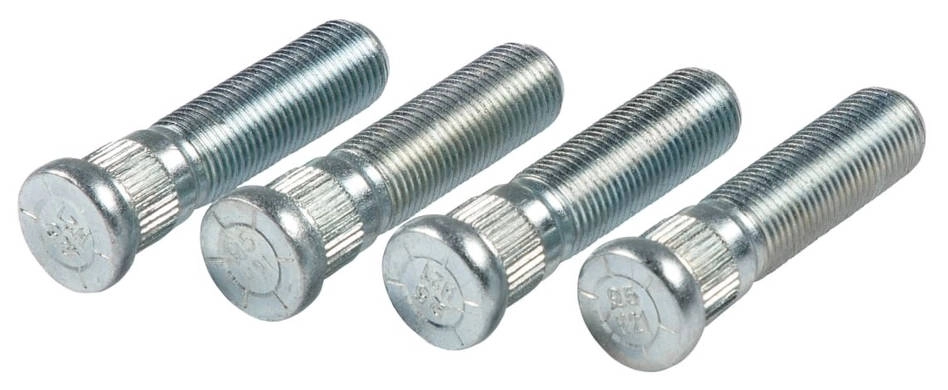

Wheel studs are threaded fasteners pressed into the hub.

Purpose: Provide the mounting points for the wheel.

Interaction: Lug nuts thread onto the studs to secure the wheel to the hub. Stud length and thread pattern must match both the hub and the wheel.

Variations:

• Different thread sizes and patterns
• Standard or extended lengths for thicker wheel centers

Wheel studs are the threaded fasteners pressed into the trailer hub that secure the wheel and tire assembly in place, making them a critical safety component for towing stability and load retention. Manufactured from hardened steel to withstand repeated torque and shear forces, wheel studs are designed to work in conjunction with lug nuts to clamp the wheel tightly against the hub face.

Trailer wheel studs vary by diameter, thread pitch, length, and knurl size, with common sizes including 1/2"-20 for light-duty trailers and 9/16"-18 or larger for higher-capacity axles. Stud length is especially important to ensure proper thread engagement when using different wheel types, such as steel versus aluminum wheels.

Capacity-wise, wheel studs are matched to the axle and hub rating, as higher-load applications require thicker, stronger studs to handle increased forces during braking, cornering, and uneven road conditions. Properly sized and torqued wheel studs help prevent wheel loosening, stud fatigue, and potential wheel separation, making regular inspection and correct replacement essential for safe trailer operation.

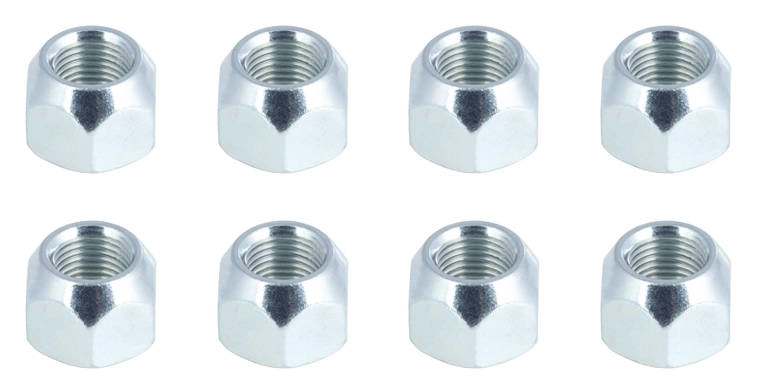

Lug nuts secure the wheel to the hub by threading onto the studs.

Purpose: Clamp the wheel firmly against the hub for safe travel.

Interaction: Work with the wheel studs and wheel center to hold the wheel in place.

Variations:

• Conical seat nuts, the most common
• Mag or shank-style nuts, seen on some specialty wheels
• Different finishes, such as chrome or zinc-plated

Trailer axle lug nuts are the threaded fasteners that secure the wheel to the wheel studs, playing a critical role in keeping the wheel and tire assembly firmly attached to the trailer hub during operation. Designed to withstand constant vibration, load shifts, and braking forces, trailer lug nuts are typically made from hardened steel and are available in several seat styles, including conical (acorn), flat, and ball seat, each engineered to match specific wheel designs. They also vary by thread size and pitch — commonly 1/2"-20 or 9/16"-18 — and must match the wheel studs exactly to ensure proper fit and clamping force.

Lug nuts come in different heights and hex sizes, which can affect torque accuracy and tool compatibility, especially when using aluminum wheels that may require longer shank-style lug nuts. Proper torque is essential, as under-tightened lug nuts can lead to wheel loosening, while over-tightening can stretch studs or damage wheels. Regular inspection and re-torquing help ensure even load distribution, prevent wheel movement, and maintain safe, reliable towing performance.

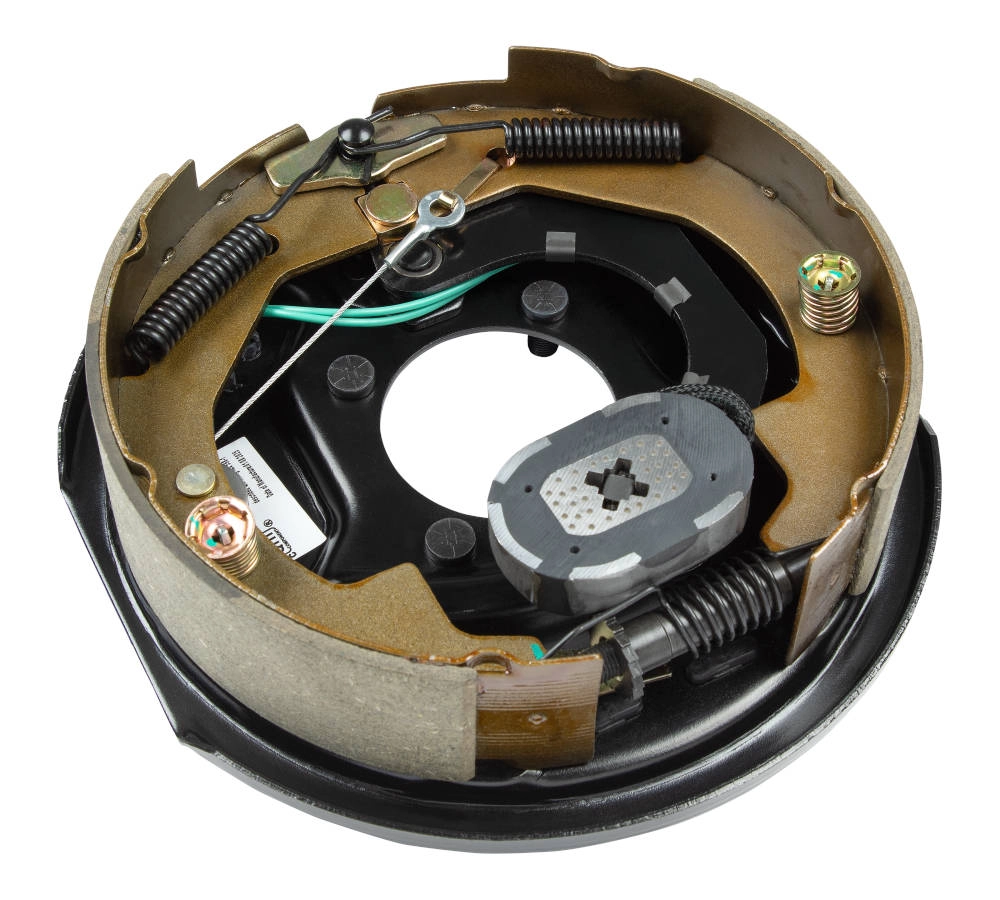

Some trailers rely on axle-mounted brakes for stopping power, while others depend solely on the tow vehicle.

Purpose: Help slow and control the trailer during braking.

Interaction: Brakes mount to the brake flange on the axle. They operate through an electric signal or hydraulic pressure. The hub or hub-and-drum assembly works with the brake components to create friction.

Variations:

• Electric drum brakes, common on utility, RV, and cargo trailers
• Hydraulic surge drum brakes, often used on boat trailers
• Hydraulic disc brakes, which offer strong, consistent performance

The brake assembly is the system responsible for slowing and stopping the trailer safely, working in coordination with the tow vehicle to control momentum and reduce stopping distance. Most trailer brake assemblies are electric drum brakes, which use an electromagnet to actuate brake shoes against the inside of a brake drum when the brake controller is engaged, though hydraulic drum and disc brake systems are also common on higher-capacity or marine trailers.

Brake assemblies are sized and rated by axle capacity, with common options designed for 3,500-, 5,200-, 6,000-, and 7,000-lb axles, and must match the hub-and-drum or rotor they’re paired with for proper operation. Variations include self-adjusting vs. manual-adjust brakes, corrosion-resistant coatings for harsh environments, and left- and right-hand–specific assemblies to ensure correct orientation and braking force.

Properly matched and maintained trailer brake assemblies improve stopping performance, reduce wear on the tow vehicle, enhance control on grades, and play a critical role in overall towing safety and compliance.

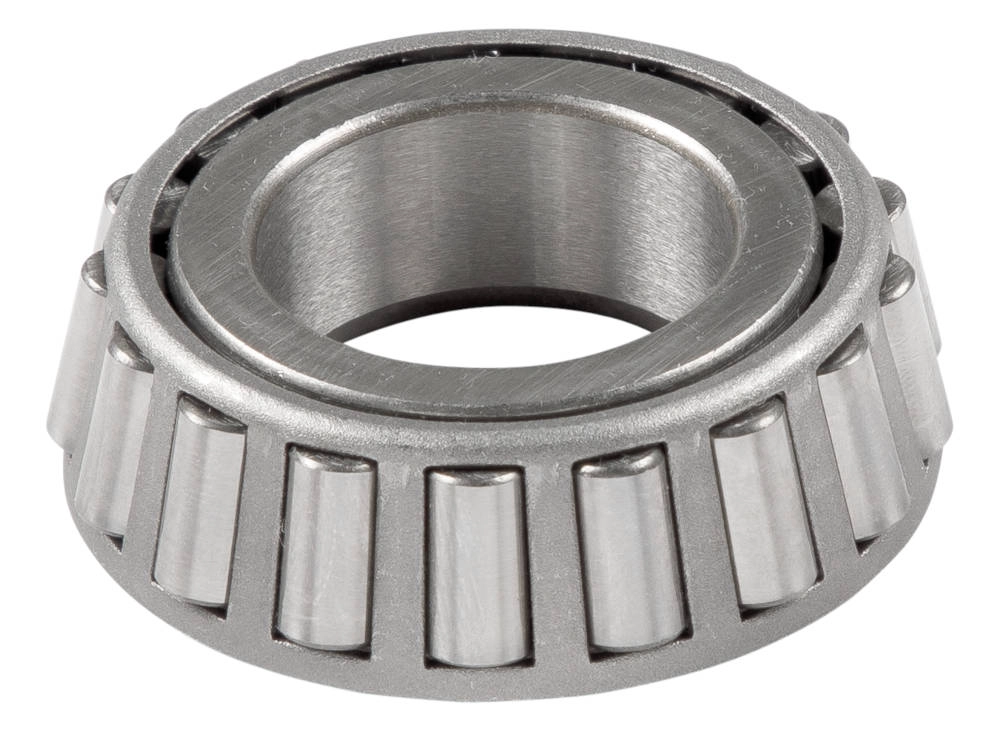

Bearings allow the wheel hub to rotate around the spindle smoothly.

Purpose: Reduce friction and support the load as the hub spins.

Interaction: The inner and outer bearings sit inside the hub and ride on the races. They surround the spindle and allow the hub to rotate freely.

Variations:

• Standard tapered roller bearings, the most common type
• Oil bath bearings, used on some marine or heavy-duty applications

Trailer wheel bearings are precision components that fit inside the hub and allow the wheel to rotate smoothly on the spindle while carrying the full load of the trailer. Most trailer axles use tapered roller bearings, which are designed to handle both radial loads (the trailer’s weight) and thrust loads (side forces generated during turns and braking). Each hub typically contains an inner and outer bearing, sized differently to manage load distribution across the spindle.

Bearings vary by inner diameter, outer diameter, and width, and are matched to specific spindle and hub combinations — common bearing sets are often associated with axle ratings such as 2,000–3,500 lbs, 5,200–6,000 lbs, or 7,000 lbs and higher. Variations include standard grease-packed bearings, bearings used in oil-bath systems, and sealed designs intended for reduced maintenance.

Proper lubrication, correct bearing preload, and routine inspection are critical, as worn or improperly adjusted bearings can overheat, fail prematurely, and lead to hub or wheel loss.

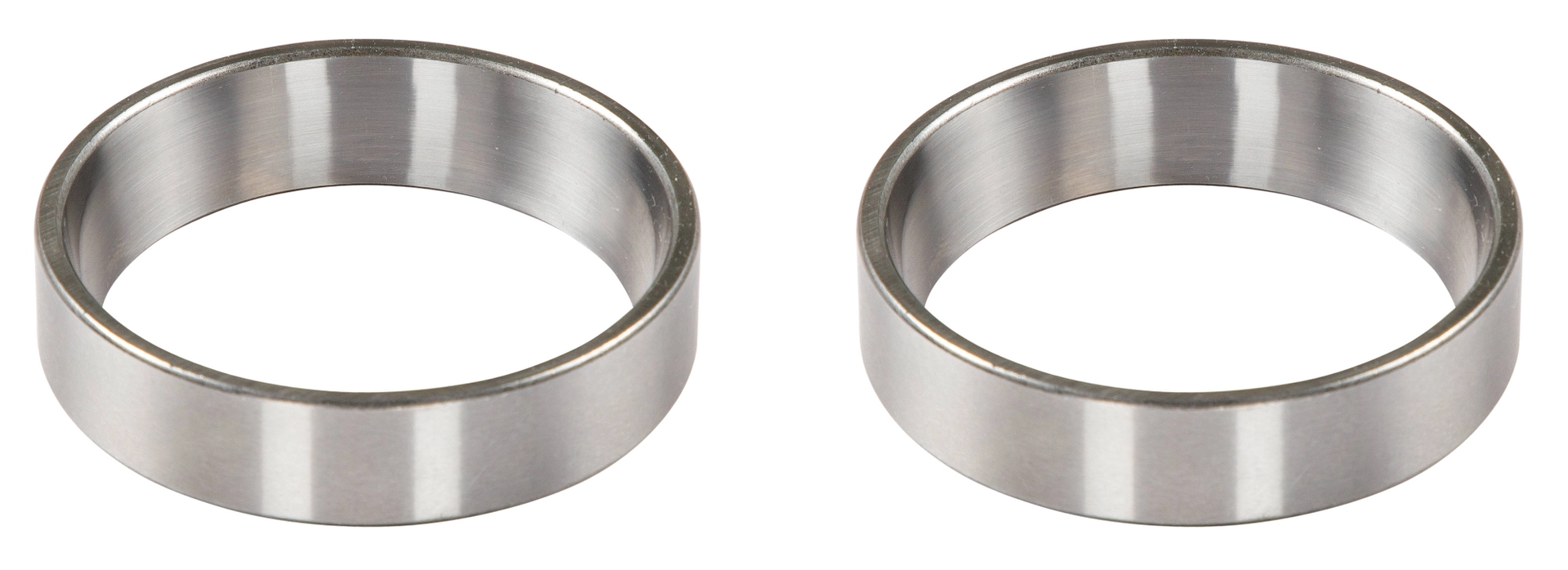

Bearing races are hardened steel rings that match the bearings.

Purpose: Provide a smooth, durable surface for the bearings to roll against.

Interaction: Press-fit into the hub. The bearings ride on the races, and together they form the rotating surface that supports the hub.

Variations: Usually matched to the specific bearing set used in the hub

Bearing races, also known as bearing cups, are the hardened steel rings that are pressed into the hub and provide a smooth, precisely machined surface for the wheel bearings to roll against. Working together with the inner and outer bearings, the races support the trailer’s load while reducing friction and heat as the wheel rotates on the spindle. Each hub uses two races — an inner and an outer — matched exactly to the corresponding bearing, making correct sizing critical for proper fit and performance.

Because races are press-fit into the hub, they must be installed squarely and replaced whenever bearings are changed or if signs of pitting, scoring, discoloration, or overheating are present. Worn or damaged races can quickly destroy new bearings, leading to excessive heat, premature failure, and unsafe towing conditions.

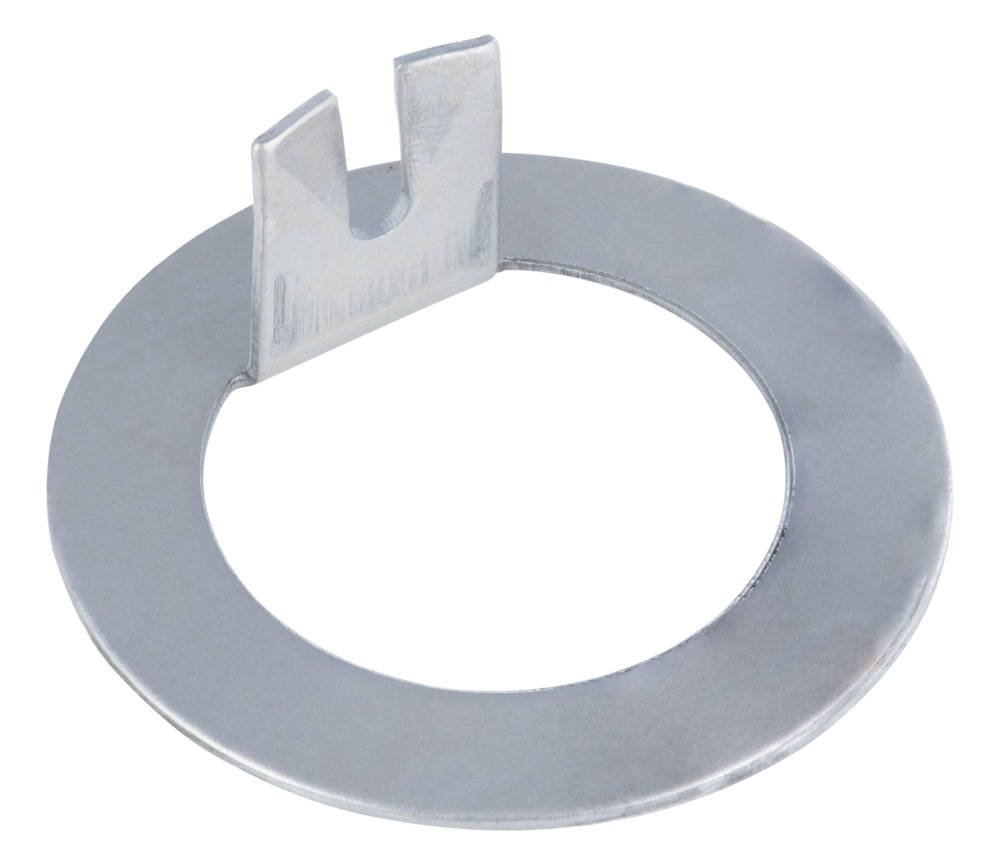

The spindle washer sits between the outer bearing and the castle nut.

Purpose: Prevents the castle nut from turning against the bearing.

Interaction: Slides onto the spindle before the castle nut is installed. Keeps the bearing preload consistent.

Variations:

• Tang washers, which lock into the spindle keyway
• Flat washers, used on many standard axles

Spindle washers are thin, hardened steel washers installed on the spindle between the outer wheel bearing and the spindle nut, playing a key role in bearing retention and proper adjustment. Their primary function is to provide a smooth, flat surface that distributes the clamping force of the spindle nut evenly, allowing the wheel bearings to be set to the correct preload without binding or excessive end play.

Many spindle washers feature a tang or tab that aligns with a groove or flat on the spindle, preventing the washer from rotating as the nut is tightened or loosened. This helps maintain consistent bearing adjustment during operation.

Spindle washers vary by inside diameter, outside diameter, thickness, and tang configuration, and must be matched precisely to the spindle size and axle capacity, whether for light-duty 3,500-lb axles or heavy-duty 7,000-lb and higher applications. A damaged, worn, or incorrectly sized spindle washer can lead to improper bearing adjustment, accelerated bearing wear, or nut loosening, making it a small but critical component for maintaining smooth wheel rotation, bearing longevity, and overall trailer safety.

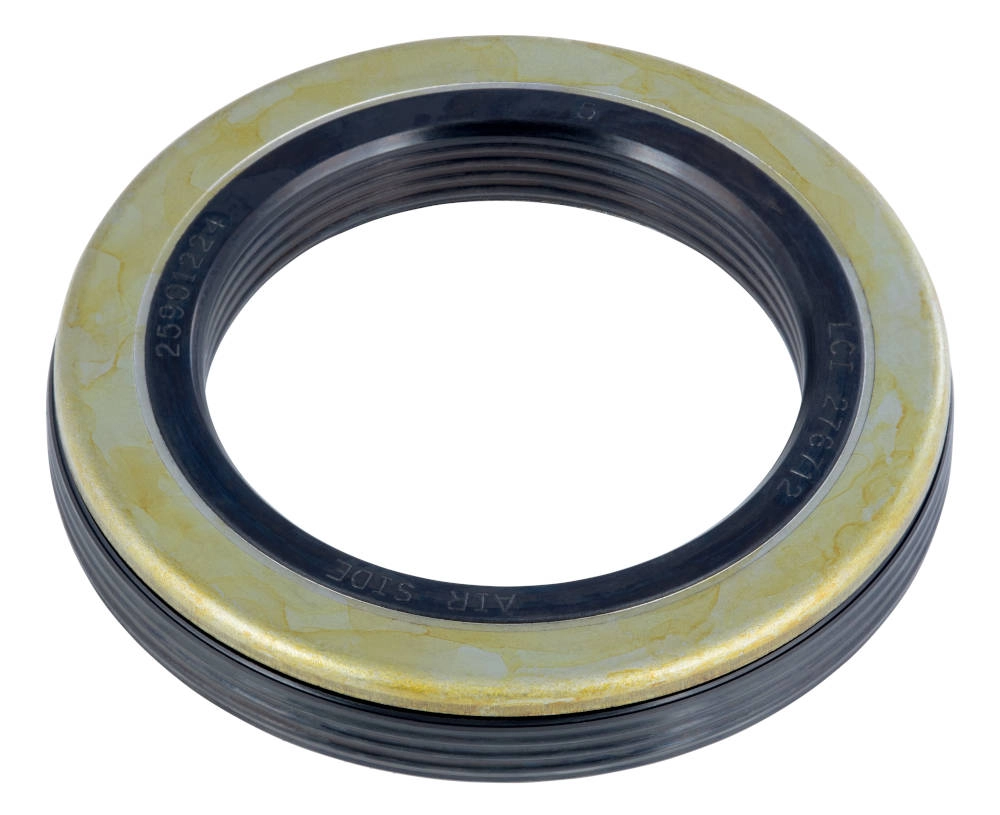

The grease or oil seal is installed at the back of the hub.

Purpose: Keep grease or oil inside the hub and prevent contaminants from entering.

Interaction: Fits over the spindle surface and seals against the hub to protect the inner bearing.

Variations:

• Grease seals, common on most light and medium trailers
• Oil seals, used for oil bath hubs

Trailer axle grease and oil seals are critical components installed at the inner end of the hub to retain lubrication and prevent contaminants like water, dirt, and road debris from reaching the wheel bearings. Grease seals are most common on standard trailer axles and are designed to keep bearing grease inside the hub while sealing tightly against the spindle’s seal surface during rotation. Oil seals, used in oil-bath hub systems, serve a similar purpose but are engineered to retain liquid oil rather than grease, often incorporating multiple sealing lips for added protection.

Trailer axle seals vary by inside diameter, outside diameter, width, and sealing material, and must be precisely matched to the spindle and hub bore to ensure proper fit and performance. Capacity and application also matter, as higher-rated axles typically use larger, heavier-duty seals to handle increased loads and heat. A worn, damaged, or improperly installed seal can allow lubricant to escape and contaminants to enter, leading to premature bearing failure and potential hub damage. Properly selected and maintained grease or oil seals are essential for protecting wheel bearings, extending service intervals, and ensuring long-term trailer axle reliability.

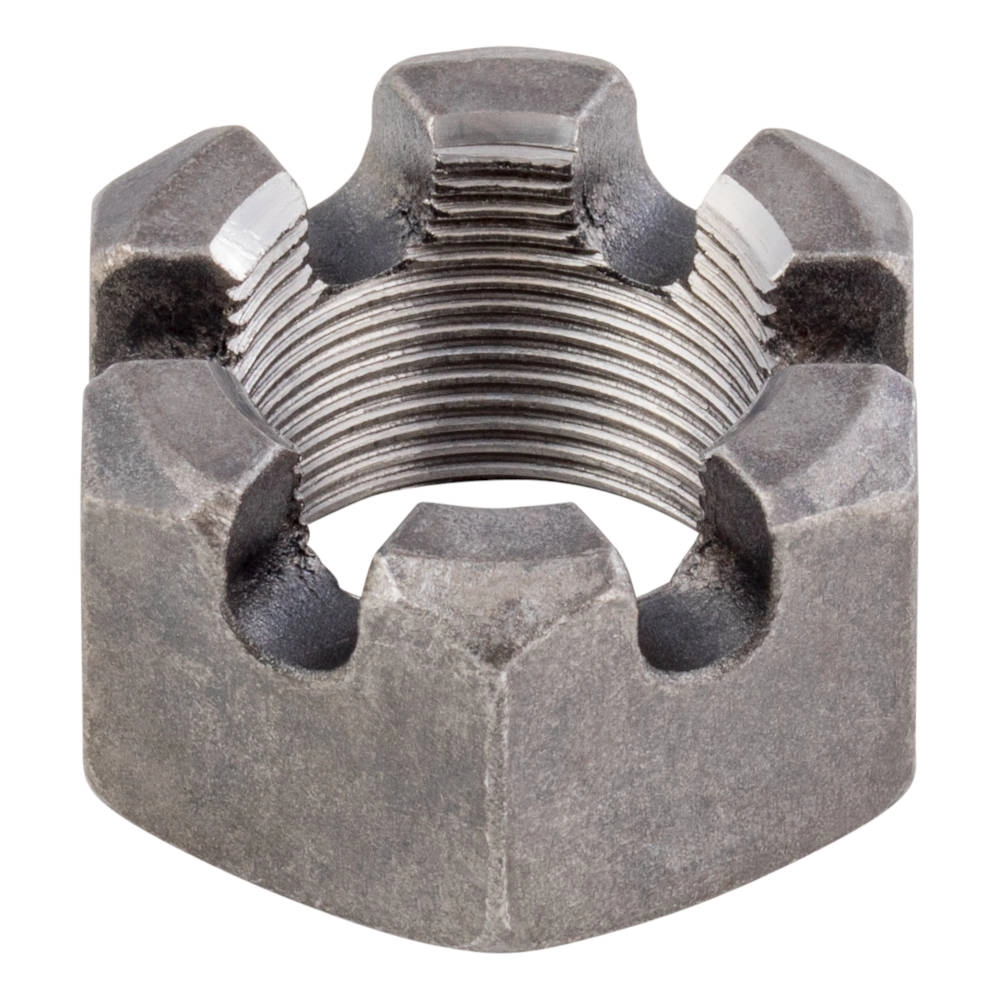

The trailer axle castle nut or spindle nut threads onto the end of the spindle to secure the hub assembly.

Purpose: Maintain bearing preload and hold the hub in place.

Interaction: Works with the cotter pin to prevent loosening. Tightness is set to allow smooth hub rotation without excess play.

Variations: Standard castle nut sizes based on spindle diameter

The trailer axle castle nut is a specialized spindle nut used to secure the hub and wheel bearing assembly onto the spindle while allowing precise bearing adjustment. Named for the notched "castle-like" slots around its outer edge, the castle nut works in conjunction with a cotter pin or retaining clip that passes through the spindle and one of the nut's slots to prevent loosening during operation.

Castle nuts are typically made from hardened steel and are sized to match the spindle’s thread diameter and pitch, with common applications ranging from light-duty 2,000–3,500 lb axles to heavy-duty 7,000 lb and higher configurations.

Unlike standard lock nuts, castle nuts are designed to be tightened to a specific bearing preload and then backed off slightly to align the cotter pin hole, ensuring the bearings can rotate freely without excess play. Using the correct castle nut — and installing it properly — is essential for maintaining bearing adjustment, preventing hub movement, and ensuring long-term wheel-end safety and reliability.

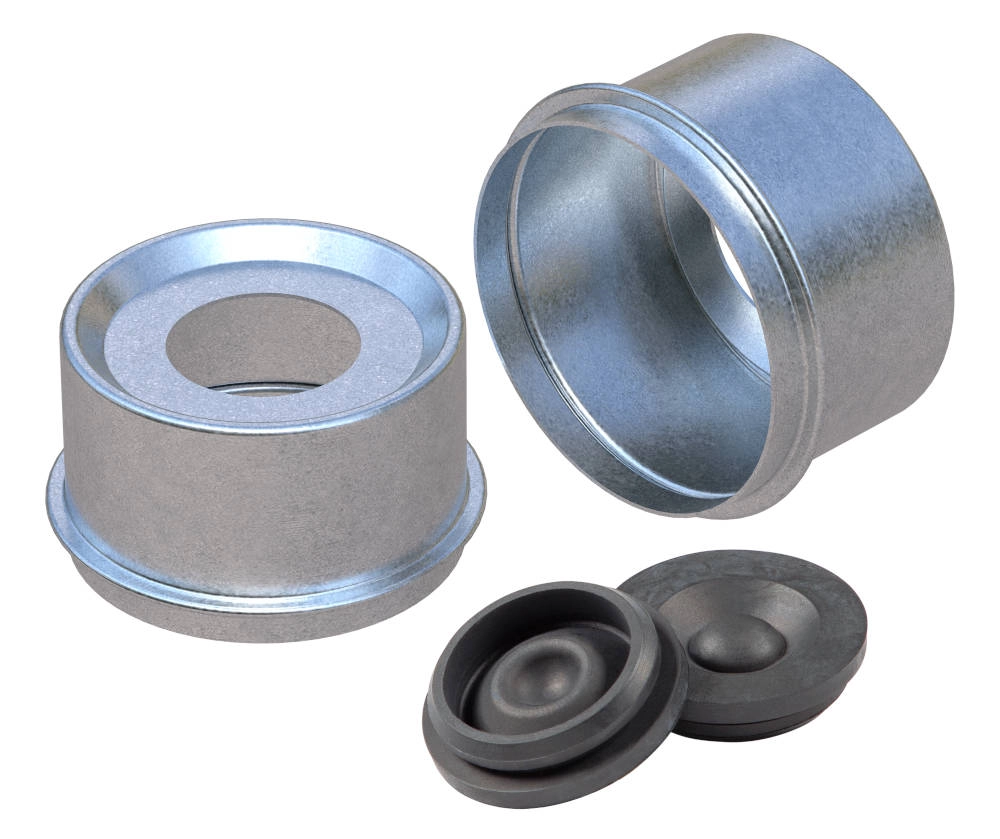

The dust cap covers the end of the hub.

Purpose: Protects the outer bearing from dirt, water, and debris.

Interaction: Presses into the hub center. On easy-lube spindles, the dust cap may feature an access point for a grease gun.

Variations:

• Standard caps
• EZ-Lube caps with removable rubber plugs
• Bearing protectors that maintain positive grease pressure, common on boat trailers

Dust caps (sometimes called hub caps or grease caps) are protective covers that fit over the outer end of the trailer hub to shield the wheel-end components — especially the outer bearing area, spindle nut/castle nut, and cotter pin — from dirt, moisture, and road debris. On standard grease-packed hubs, the dust cap also helps retain grease and reduce the chance of contamination that can lead to bearing wear or overheating. Dust caps come in several common styles, including press-in metal caps (the most typical), rubber plug caps (often used with EZ Lube® / greaseable spindles so you can access the zerk fitting), and vented or oil-bath caps designed for oil-lubricated systems where internal pressure changes need to be managed.

Sizing is critical: dust caps are selected by the hub bore diameter (commonly around 1.98" on many 3,500-lb-style hubs, with larger diameters used for higher-capacity axles), and they must seat evenly to prevent leaks, rattling, or cap loss. A dented, loose, or missing dust cap can allow water intrusion — especially after rain or boat ramp launches — leading to grease breakdown, corrosion, and premature bearing failure, so it's a small, inexpensive part that plays an outsized role in keeping your trailer’s wheel bearings clean, lubricated, and reliable.

Wheels mount onto the hub and make direct contact with the road through the tires.

Purpose: Support the load and provide a mounting surface for the tires.

Interaction: Secured to the hub with the lug nuts. Wheel diameter and bolt pattern must match the hub design.

Variations:

• Steel or aluminum
• Multiple bolt patterns
• Different offsets, widths, and load ratings

Trailer wheels are the structural link between the axle and the tires, designed specifically to handle sustained loads, high side forces, and the unique stresses of towing. Unlike automotive wheels, trailer wheels are engineered with higher load ratings, thicker materials, and zero offset designs to maintain proper bearing alignment and axle geometry. They vary by diameter, width, bolt pattern, center bore, and load capacity, with common sizes ranging from 12" to 16" and beyond, depending on axle rating and tire selection.

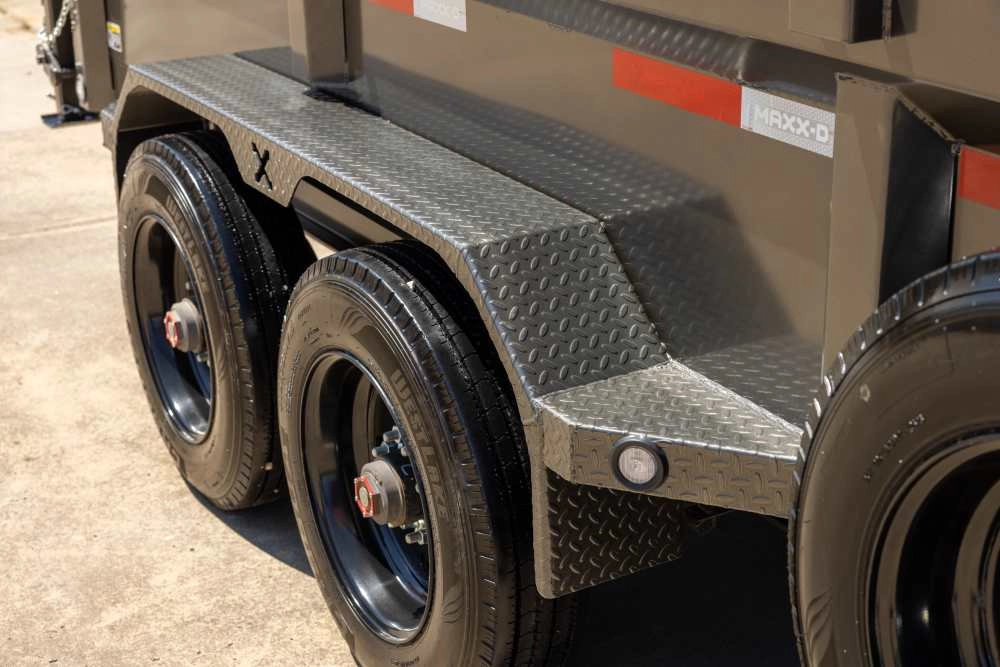

Trailer tires differ from passenger vehicle tires because they are built to handle heavy loads and high pressure.

Purpose: Carry the trailer’s weight, absorb road vibrations, and provide traction.

Interaction: Mounted on the wheel and inflated to the manufacturer’s specified pressure. The tire and wheel assembly sits on the hub and rotates with the axle system.

Variations:

• ST (Special Trailer) tires, designed specifically for trailers
• Radial or bias ply constructions
• Various load ranges for different capacities

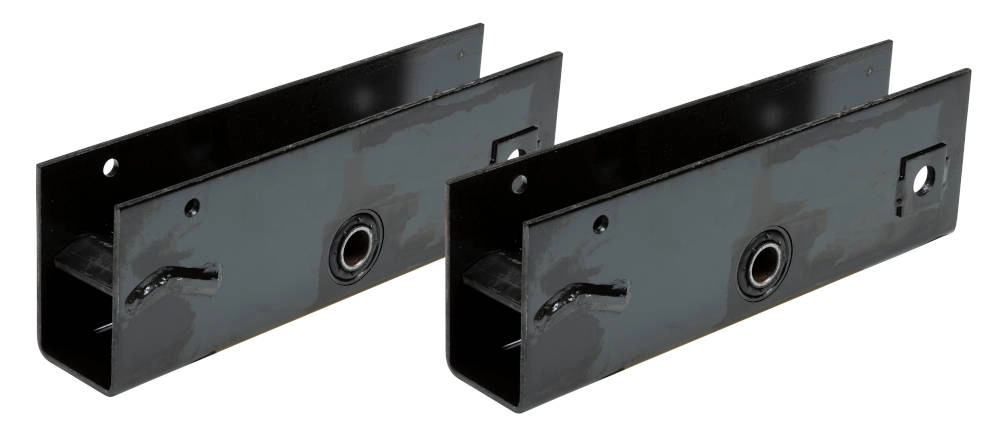

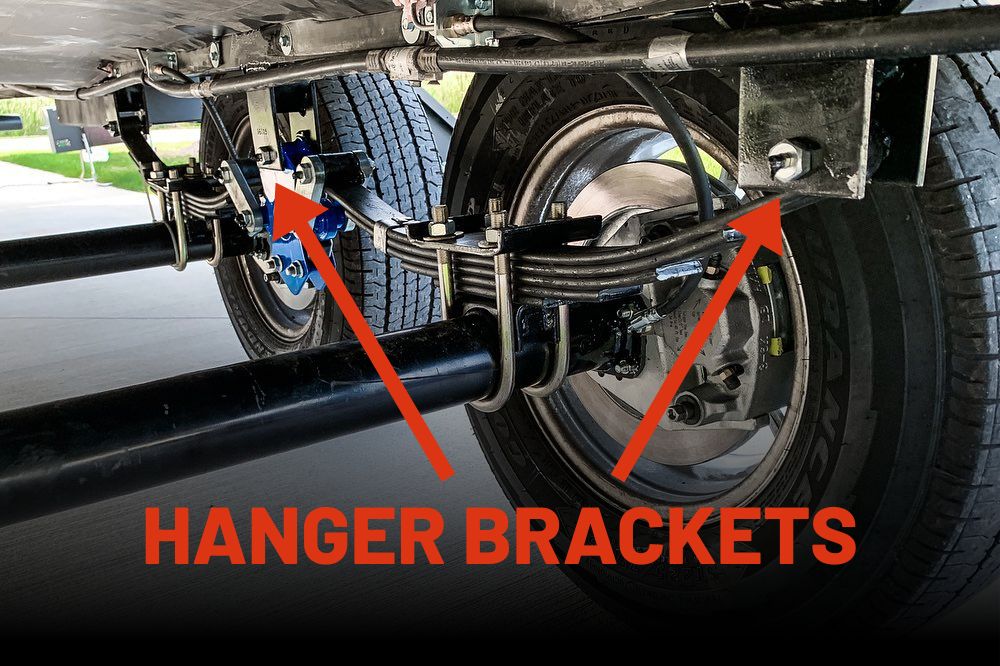

Hanger brackets are mounting points welded to the trailer frame.

Purpose: Support the leaf springs on spring axle systems.

Interaction: Leaf spring eyes or shackles connect to the hangers, allowing the axle to move through its travel.

Variations:

• Front hangers
• Rear hangers with shackle connections
• Center hangers for multi-axle equalizer systems

Trailer axle hanger brackets are the heavy-duty steel mounts welded or bolted to the trailer frame that provide the primary attachment points for a leaf-spring suspension system, essentially "hanging" the springs (and therefore the axle) in the correct position under the trailer. On most leaf-spring setups, you’ll see a front hanger that anchors the fixed eye of the spring, a rear hanger that connects to a shackle link (allowing the spring to change length slightly as it flexes), and — on tandem or triple-axle trailers — an equalizer hanger in the center that supports the equalizer and helps distribute load between axles.

Axle hanger brackets vary by height (which influences ride height and axle-to-frame clearance), width (to match spring eye/shackle hardware), bolt-hole diameter (common 9/16" or 1/2" hardware), and material thickness (heavier brackets are used on higher GVWR trailers and rough-service applications). Some designs are standard weld-on hangers, while others are bolt-on kits used for repairs or adjustable setups; there are also reinforced or gusseted hangers built to handle higher loads and reduce frame flex.

Because hanger brackets determine axle alignment and suspension geometry, worn holes, cracked welds, or bent hangers can cause uneven tire wear, poor tracking, and handling issues — so proper sizing, correct spacing, and solid mounting are essential for a stable, long-lasting suspension system.

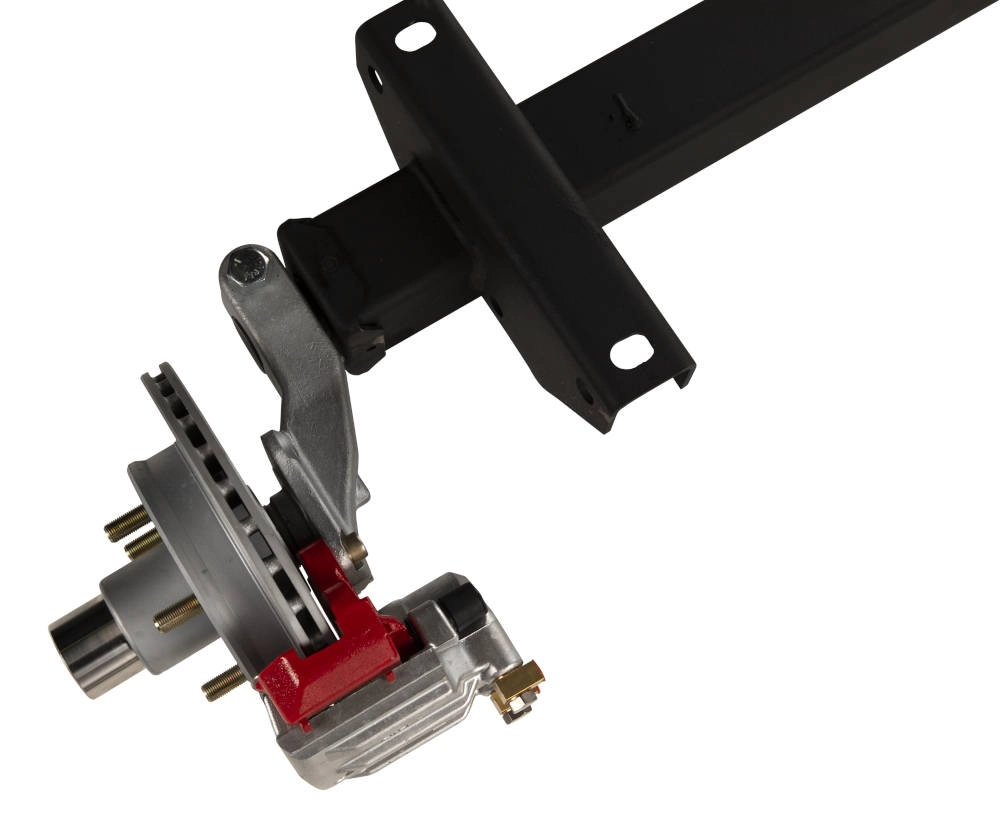

Torsion arms are key components in torsion suspension systems.

Purpose: Provide independent suspension movement through rubber cords inside the axle beam.

Interaction: Each torsion arm connects directly to the wheel spindle. As the wheel moves, the arm rotates against the internal rubber cords to absorb impact.

Variations:

• Different start angles for ride height
• Various load ratings based on arm design and internal rubber density

Torsion arms are the key moving components in a torsion axle suspension system, connecting the wheel spindle / hub assembly to the axle’s internal rubber cords (or other elastomer elements) that provide both springing and damping. Instead of using leaf springs and hanger brackets, a torsion arm pivots on a splined shaft (or similar spindle) housed inside the axle tube; as the trailer hits bumps and the wheel moves upward, the arm rotates and compresses the internal rubber, which resists the motion, absorbs shock, and helps control rebound for a smoother ride.

Torsion arms come in different starting angles (often described as "up," "down," or neutral orientations in degrees), which effectively set ride height and suspension travel — an important consideration for ground clearance, loading height, and tire-to-fender clearance. They also vary by length, spindle type, brake compatibility, and capacity, with designs scaled to match axle ratings from light-duty utility trailers up through higher-GVWR travel trailers and equipment haulers.

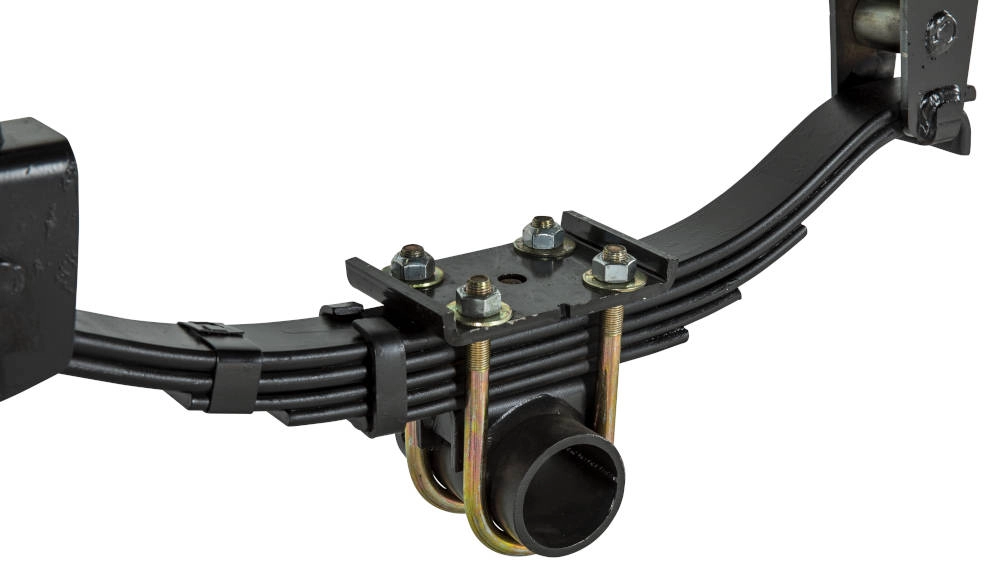

Leaf springs are long, curved pieces of spring steel used to support and cushion the trailer.

Purpose: Absorb impacts and distribute load across the axle.

Interaction: Connected to the hangers through bolts or shackles. The center of the spring mounts under or over the axle using U-bolts and a spring plate.

Variations:

• Double-eye springs, with bushings at both ends
• Slipper springs, where one end slides into a hanger slot
• Multi-leaf or mono-leaf versions for different weight capacities

Leaf springs are a traditional and widely used suspension component on spring-type trailer axles, responsible for supporting the trailer’s weight, absorbing road shock, and maintaining proper axle alignment under load. Constructed from stacked layers of high-strength spring steel — called leaves — they flex as the trailer encounters bumps, distributing weight evenly across the axle and frame.

Trailer leaf springs are commonly identified by number of leaves, spring width, length, and load rating, with popular capacities including 2,000–2,500 lbs per pair for light-duty trailers and up to 7,000 lbs or more per axle for heavier applications. Variations include double-eye springs (eyelets on both ends, typically used on tandem axles with equalizers) and slipper springs (one open end that slides in a hanger, often used on single-axle trailers). Leaf springs may also feature progressive designs, where thicker or additional leaves engage under heavier loads, improving ride quality when lightly loaded while maintaining strength at capacity.

Because leaf springs directly influence ride height, load distribution, and handling, selecting the correct size and rating — and replacing worn, sagging, or cracked springs — is essential for even tire wear, stable towing, and long-term suspension performance.

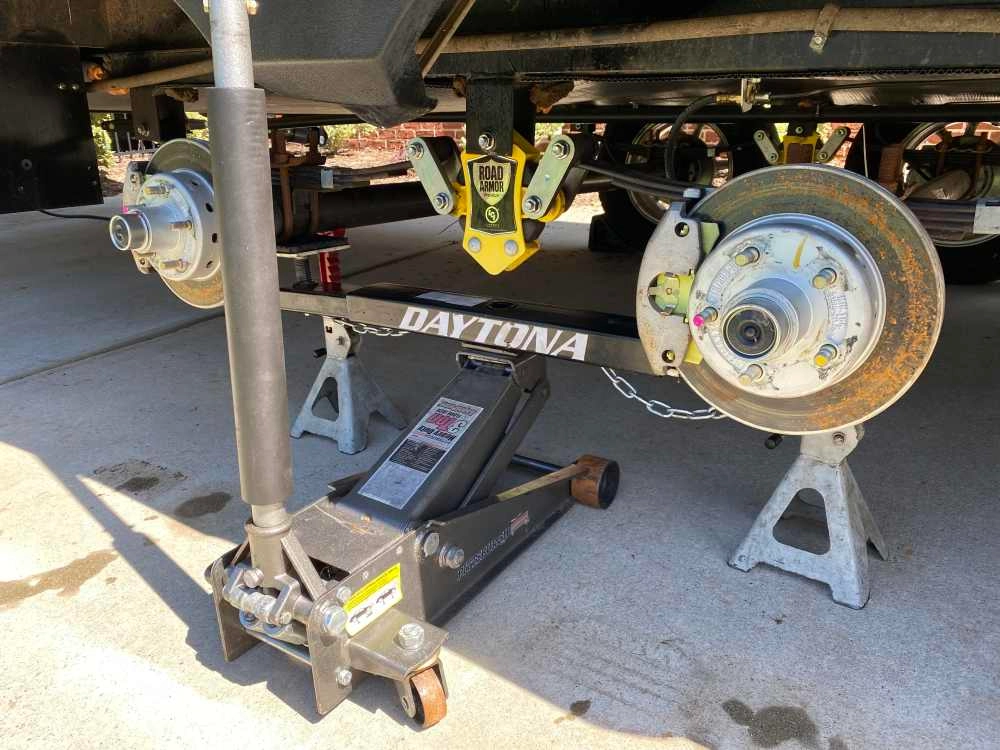

Equalizers are suspension components used on tandem- and triple-axle trailers to help distribute weight evenly between axles as the trailer travels over uneven surfaces.

Purpose: Balance load between multiple axles, improve ride quality, and reduce stress on springs, axles, and the trailer frame.

Interaction: Mounted between the front and rear leaf springs, the equalizer pivots as the trailer moves, allowing one axle to rise over obstacles while transferring weight to the other axle to maintain tire contact with the road.

Variations:

• Standard steel equalizers
• Heavy-duty or reinforced equalizers for higher GVWR trailers
• Rubber-cushioned or shock-absorbing equalizers for improved ride quality
• Different lengths, bolt-hole sizes, and load ratings to match spring and axle capacities

Trailer equalizers are critical suspension components used on tandem and triple-axle trailers to balance load distribution between axles and improve overall ride stability as the trailer travels over uneven terrain. Positioned between the front and rear leaf springs, the equalizer pivots as one axle encounters bumps or dips, transferring weight to the opposing axle so both axles maintain consistent contact with the road. This load-sharing action helps reduce shock to the trailer frame, minimizes suspension stress, and promotes more even tire wear across all axles.

Equalizers vary by length, height, bolt-hole diameter, and load rating, and must be properly matched to the trailer’s axle capacity — commonly supporting combined axle ratings such as 7,000 lbs, 8,000 lbs, 10,000–12,000 lbs, or higher. Variations include standard steel equalizers, reinforced heavy-duty designs for higher-GVWR or off-road applications, and rubber-cushioned or shock-absorbing equalizers that incorporate elastomer or dampening elements to reduce vibration and improve ride quality.

Because equalizers directly affect axle alignment, suspension movement, and load balance, selecting the correct style and rating is essential for stable towing, longer component life, and consistent braking and handling performance across multiple axles.

Beyond the core elements, many trailers also use additional components to improve ride quality and stability.

Examples:

• Shackle links, which allow spring movement during suspension travel
• U-bolt kits and spring plates to secure the axle to the leaf springs
• Shock absorbers, used on select RV and utility trailer setups for smoother towing
• These pieces work together to support the trailer, reduce road impacts, and maintain consistent wheel alignment under load

A trailer axle system depends on the precise interaction of many components. From the bearings inside your hub to your leaf springs or torsion arms, each part has a specific role that affects safety, performance, and trailer longevity.
