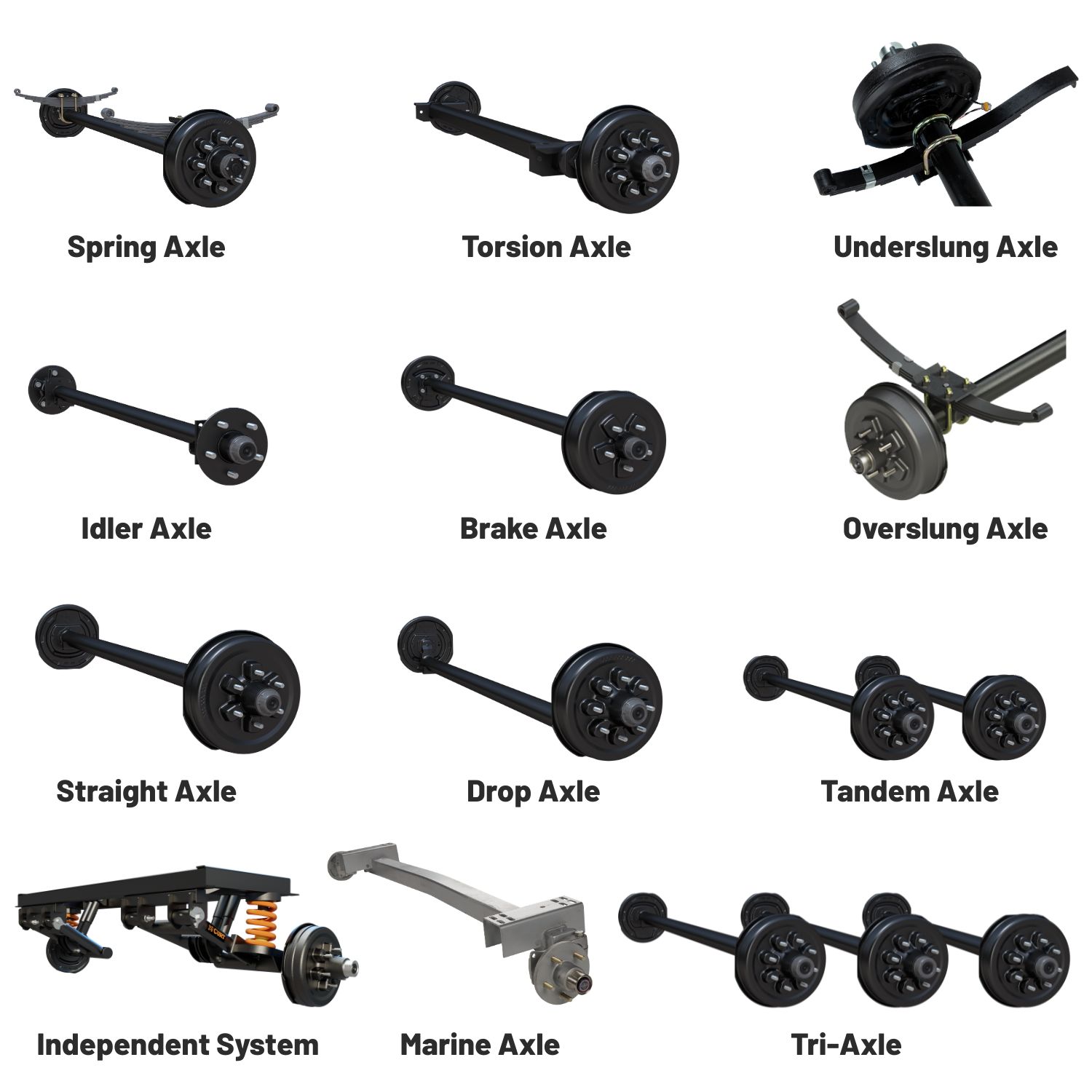

Understanding the Different Types of Trailer Axles

When it comes to trailers, one of the most critical components in ensuring safe and efficient transport is the axle. Understanding the types of trailer axles is essential for anyone in the market for a new trailer or looking to replace an existing axle. The right axle choice can impact everything from load capacity to ride comfort and maintenance needs.

Each type of axle has specific advantages and disadvantages that make it suitable for particular uses, whether it’s for a utility trailer, a boat trailer, or a larger multi-axle setup. In this post, we’ll explore the various trailer axles, including their definitions, benefits, drawbacks, and ideal applications. We'll also take a closer look at how each axle works and what sets it apart from the others.


1. Spring Axle
2. Torsion Axle
3. Hybrid Spring Axle
4. Short Axle
5. Drop Axle
6. Straight Axle
7. Independent Suspension
8. Idler Axle
9. Brake Axle
10. Overslung Axle
11. Underslung Axle
12. Single Axle
13. Tandem Axle
14. Triple Axle

Spring axles are the most traditional axle design and have been used in trailers for decades. These axles rely on leaf springs, which are metal strips that flex and absorb shock as the trailer moves. The springs are mounted on the axle, and the suspension system helps to evenly distribute the weight of the load, providing better stability.

One of the primary benefits of a spring axle is its ruggedness and affordability. Spring axles can handle heavier loads and are relatively inexpensive, which makes them a popular choice for many types of trailers, including utility trailers, flatbeds, and livestock trailers. They’re also easy to repair, and parts are widely available.

However, spring axles are generally less efficient in terms of ride quality compared to torsion axles. The metal-on-metal contact can lead to more wear over time, and the ride can feel rougher, especially when the trailer is unloaded. Additionally, spring axles require more maintenance, including lubrication and occasional spring replacement.

Despite these drawbacks, spring axles are a good choice for those who need a durable, affordable axle for multi-axle configurations or those carrying heavier loads.

The torsion axle is a more modern axle design that uses rubber cords to provide suspension. Instead of traditional leaf springs, a torsion axle works by twisting the axle tube itself, with rubber elements inside providing the necessary shock absorption. This creates a smooth and quiet ride by minimizing road shock, which is particularly important for trailers carrying delicate or expensive cargo.

One of the key advantages of a torsion axle is the reduction in maintenance. Since there are no metal-on-metal parts rubbing together (as in the case of spring axles), there’s less wear over time, and the axle is less prone to corrosion.

However, torsion axles typically come at a higher cost compared to spring axles. Additionally, while the ride quality is superior, torsion axles can be more difficult to repair, and if one part of the suspension fails, you may need to replace the entire axle.

Torsion axles are ideal for utility trailers and are one of the best types of boat trailer axles, where a smoother ride and reduced maintenance are essential. They’re also great for applications where the trailer needs to stay low to the ground, as they can be designed for tighter clearance.

When choosing between types of trailer axles, the most common decision trailer owners face is whether to go with a torsion axle or a spring axle. Each suspension style comes with its own unique design, advantages, and trade-offs. Understanding how each works and what they’re best suited for is essential in selecting the right setup for your utility trailer, boat trailer, or any other towed application.

Ultimately, the choice between a torsion axle and a spring axle depends on how — and where — you plan to use your trailer. Let’s break down the key deciding factors:

If you’re regularly hauling heavy loads, spring axles are the go-to choice. Their strength, adjustability, and load distribution abilities make them ideal for weight-intensive applications. On the other hand, if you’re towing lighter or moderately loaded trailers — such as travel trailers, enclosed haulers, or small cargo carriers — and you want a quiet, refined ride, torsion axles offer better performance.

For trailers that frequently encounter gravel roads, campsites, or other uneven terrain, the independent suspension of a torsion axle makes a noticeable difference in comfort and control. The rubber cords absorb shocks efficiently and protect the cargo from excessive jostling. Conversely, trailers that stick to paved highways and well-maintained roads can get by just fine with spring axles, and you’ll benefit from a more budget-friendly solution.

If you prefer low-maintenance components that require fewer checkups, torsion axles are hard to beat. With their sealed system and minimal moving parts, there’s simply less to do over time. However, if you’re comfortable with routine inspections, occasional part replacements, and enjoy the flexibility of tuning your suspension for specific jobs, leaf spring axles are a proven and user-friendly option.

Budget plays a major role in most trailer decisions. Leaf spring axles are generally more affordable to purchase, repair, and replace. This makes them popular among budget-conscious haulers and anyone looking for a dependable, serviceable suspension without the premium price. If cost is less of a concern and you’re looking for high-quality ride performance, then investing in torsion axles may be well worth the extra money.

A hybrid spring axle combines elements of both traditional spring axles and modern design innovations. This type of axle aims to provide the best of both worlds: the rugged load-handling capacity of spring axles with improvements that reduce unsprung mass (the weight that isn’t supported by the suspension) and increase the overall efficiency of the system. For example, a hybrid axle can allow for a lower profile and more clearance.

The 8K hybrid axle, exclusive to Lippert, is a popular example of this type of axle. It’s rated for an 8,000-lb. capacity, but the drum brakes are rated for slightly less, at 7,000 lbs. This axle is perfect for applications requiring strength but with a lighter, more efficient design. Its ability to support heavier loads while reducing the unsprung mass makes it ideal for trailers that need to maneuver tighter turns and reduce wear on the tires.

The hybrid spring axle can be used in a wide range of applications, including boat trailers, car haulers, and other utility trailers. Its unique design offers an excellent balance between durability and performance.

The short axle is a specialized type of axle designed for trailers that need to handle tight spaces or reduced overhangs. The 10K short axle is one of the most popular versions of this design. It’s capable of handling up to 10,000 lbs. of weight and can be used in both single and dual-tire configurations.

One of the standout features of the short axle is its ability to reduce unsprung mass and provide a tighter turning radius, making it ideal for applications where space is limited or where the trailer needs to stay closer to the ground. The 10K short axle can be used for heavy loads and is suitable for both single-axle and multi-axle setups.

If you need a high-quality, durable axle that is lightweight but strong, the short axle is an excellent choice, especially for trailers with specific size constraints.

Drop axles are designed with a bend in the axle beam, which lowers the trailer's deck height. This provides several advantages, especially when loading and unloading cargo. By lowering the deck height, it becomes easier to load heavier items, and the trailer's center of gravity is also reduced, improving stability on the road.

The drop axle is often used for boat trailers or car haulers, where a lower deck height is crucial for loading large vehicles. However, it’s important to note that this design reduces ground clearance, so it's not ideal for trailers that frequently travel over rough terrain.

A straight axle is the most basic design, consisting of a single, straight beam connecting two wheels. This axle type is commonly found in lighter-duty trailers, such as boat trailers or small utility trailers. The simplicity of the design makes it easy to maintain and relatively inexpensive to replace.

Straight axles work best in applications where the load is evenly distributed and doesn't require advanced suspension technology. These axles are versatile and widely used, though they don't provide the same ride comfort as more advanced suspension types, such as torsion axles or independent suspension systems.

An independent suspension system allows each wheel of the trailer to move independently. This significantly improves ride quality, particularly on rough terrain, as it reduces the amount of shock transferred to the trailer. Each wheel’s movement is isolated from the other, which results in a smoother ride and better handling, especially when navigating bumpy or uneven surfaces.

One of the key benefits of independent suspension is that it can reduce tire wear by allowing the wheels to adjust independently. It also helps prevent uneven wear, which is a common problem with spring axles. Additionally, independent suspension systems are excellent for trailers that will be used in off-road conditions or for those carrying delicate loads that require additional suspension support.

While the core types of trailer axles have already been covered, there are a number of axle variations and options that can affect the axle's performance and the trailer’s overall handling. These variations often cater to specific needs such as braking systems, load distribution, or ride quality. Here are some of the most common variations:

An idler axle is essentially a non-braked axle, meaning it doesn't have any brake components installed. Idler axles are often used in utility trailers and lighter-duty applications where the load isn’t as heavy, or where braking isn’t required. Because they don’t have drum brakes or disc brakes, they’re lighter and cheaper compared to full brake axles. An idler axle is typically paired with brake axles on the same trailer when additional braking power is necessary for heavier loads.

The major advantage of an idler axle is that it reduces the overall cost and weight of the trailer, making it suitable for trailers with less stringent requirements. However, when the trailer is used for carrying heavier loads, an idler axle will need to be supplemented with additional brake axles.

A brake axle comes equipped with drum brakes or disc brakes, depending on the application and trailer requirements. The brakes are designed to help stop the trailer and increase safety when towing heavier loads. Brake axles are essential for trailers that exceed certain weight limits, where a greater stopping force is necessary.

There are many different brake axle options depending on the type of brake system used, including electric drum brakes and hydraulic disc brakes. The type of braking system will impact the overall performance and efficiency of the axle, with electric brakes offering better control for general towing and hydraulic brakes excelling in heavier-duty applications.

An overslung axle setup refers to the positioning of the axle beam above the leaf spring stack. In this configuration, the leaf springs are mounted directly beneath the axle. This seemingly small change in geometry can have a noticeable effect on your trailer’s ride height and clearance.

The primary benefit of an overslung axle is increased ground clearance. Raising the trailer body allows for larger wheels or tires and is especially useful in off-road or uneven terrain applications. This setup also helps prevent the trailer from bottoming out when going over dips, potholes, or steep driveways. For RVers who venture off the beaten path or trailer owners who routinely load and unload on uneven surfaces, an overslung axle can provide a more versatile towing experience.

However, this added clearance comes with trade-offs. Raising the trailer’s center of gravity can reduce stability, particularly at higher speeds or when cornering. In multi-axle configurations, improper installation or alignment can also lead to uneven tire wear if the geometry isn’t dialed in correctly.

In contrast, an underslung axle is mounted beneath the leaf springs, meaning the axle beam sits lower than the spring pack. This is the most common configuration used in most utility trailers, boat trailers, and stock cargo haulers.

The biggest benefit of an underslung axle is a lower deck height. This makes loading and unloading easier, especially for heavy or bulky cargo. The trailer has a lower center of gravity, which typically means better handling and improved stability while towing. It’s also generally the preferred setup for trailers that prioritize balance, control, and ease of access.

That said, underslung axles have reduced ground clearance, which can be a downside in off-road conditions or for trailers that frequently encounter curbs, steep driveways or dips in the road. This makes them less suitable for lifted applications or aggressive terrain.

The configuration of your trailer axles refers to how many axles are used and how they are arranged. The configuration plays a significant role in the trailer’s stability, maneuverability, and weight distribution. Here are the most common axle configurations:

A single axle trailer has just one axle to support the entire load. This configuration is generally used for smaller utility trailers, boat trailers, and enclosed trailers that carry lighter cargo. While a single axle provides the simplicity and low cost of design, it can lead to uneven weight distribution and less stability, particularly when carrying larger or more uneven loads.

Advantages of a single axle include its lower cost and reduced maintenance needs. On the downside, single axle trailers can be harder to maneuver when loaded and may experience more wear and tear, especially if the trailer is overloaded.

A tandem axle, also referred to as a double axle, is one of the most common axle configurations for medium to heavy-duty trailers. These trailers have two axles positioned in parallel, allowing the load to be distributed more evenly between the two axles. This configuration is commonly found on larger utility trailers, car haulers, boat trailers, and trailers designed to carry heavier loads.

The tandem axle setup offers increased stability and better load distribution, making it ideal for carrying heavy cargo. The extra axle helps absorb more of the load’s weight and provides better balance, which reduces the risk of tire wear and improves handling, especially on rough terrain.

A triple axle configuration uses three axles and is typically found on trailers designed for heavy-duty applications such as construction, transportation of oversized equipment, or large boat trailers. This setup provides even more load distribution and stability than tandem axles and is particularly useful for towing heavy loads or unevenly distributed cargo.

Tri-axle configurations are commonly used for long-haul cargo or where the load exceeds typical capacity. They reduce the tire wear by spreading the weight across more tires, but they also require more space for turning and maneuvering, and the additional axle adds complexity and cost.

Identifying your trailer axle type is an important step when replacing or upgrading an axle. Different types of trailer axles are designed for specific purposes, so knowing exactly what you have can ensure compatibility with replacement parts or new upgrades.

Most trailers will have a label or a stamp on the axle itself that indicates the axle type, weight rating, and other relevant information. The manufacturer’s stamp can often be found directly on the axle tube or on a label affixed to the axle’s housing. This will tell you whether the axle is a torsion axle, spring axle, or another type.

If your trailer doesn’t have a tag or you didn’t purchase it from a dealer, don’t worry — there are still ways to get the right fit. We’ve outlined a few simple measuring methods below.

Another way to identify your axle is by examining the suspension system. Torsion axles will have rubber cords inside the axle tube, while spring axles will have metal leaf springs attached. If you can see the suspension components, you’ll be able to determine whether the axle relies on a torsion system or a spring-based system.

The purpose of your trailer can also provide clues as to the type of axle it has. For instance, trailers designed to carry heavier loads like car haulers or boat trailers are more likely to have spring axles, hybrid spring axles, or independent suspension systems. Lighter-duty trailers, such as small utility trailers, may have a single axle or a torsion axle.

If in doubt, you can always consult the trailer’s manufacturer or a trailer specialist who can help identify the type of trailer axle that you have based on the trailer's specifications.

There are several types of trailer axles, each designed for different towing needs and trailer designs. Common types include torsion axles, spring axles, hybrid spring axles, short axles, drop axles, straight axles, and independent suspension systems. Additionally, variations like brake axles, idler axles, overslung axles, and underslung axles provide flexibility based on load capacity, ride height, and braking needs. Trailers may also use different configurations like single axle, tandem axle, or tri-axle setups, depending on their size and purpose.

Both leaf spring axles and torsion axles have their strengths. Torsion axles are low-maintenance, offer a smoother ride, and are great for lighter to moderate loads and rougher terrain due to their independent suspension and rubber cords. On the other hand, leaf spring axles are more affordable, durable, and better suited for heavier loads.

To identify your type of trailer axle, start by inspecting the axle system underneath your trailer. If the axle uses leaf springs — long, curved metal strips stacked together and connected to the trailer frame — it’s a spring axle. If there's no visible spring and the axle is enclosed in a metal tube with rubber cushioning inside, it’s likely a torsion axle. You can also check for a tag or sticker on the axle itself. This ID tag typically lists the axle's manufacturer, capacity, serial number, and other axle part specifications. If you're unsure, consult your trailer’s manufacturer or a professional technician.

If your trailer is carrying heavy loads (typically over 3,000 lbs.), you will likely need a brake axle for safety. Brake axles provide the necessary braking power for larger loads. If your trailer is used for lighter loads and doesn’t require additional braking power, you can opt for an idler axle to save on weight and cost.

Yes, it’s possible to replace a spring axle with a torsion axle, but it requires modifications to the trailer’s frame. Torsion axles are more compact, and the replacement may necessitate adjustments in axle mounting. It's a good idea to consult with a professional to see if this replacement is feasible for your trailer.

A tri-axle configuration provides even more load distribution than a tandem axle. It is best suited for heavy-duty applications where the trailer is hauling oversized or extremely heavy cargo. The triple axle reduces the weight on each tire, improving tire wear and handling, though it requires more space and is harder to maneuver.

If your trailer is used for boats or has low-clearance cargo, a drop axle will help lower the deck height, making loading easier. You can identify a drop axle by its unique design, which includes a bend in the axle tube that lowers the trailer’s overall height.
