RV Window Installation: Step-by-Step Guide for Replacing RV Side Glass

RV window installation involves measuring the opening, removing the existing window, preparing the surface, sealing the new unit, and fastening it correctly to prevent leaks and structural issues. This guide explains each step in practical detail, highlights common mistakes, and connects the process to replacement window and RV side glass solutions designed for durability and fit.

Whether the goal is repairing damaged glass, upgrading insulation, or replacing aging frames, proper installation directly impacts weatherproofing, road safety, and long-term maintenance.

• RV Window Installation Guide
• When RV Window Replacement Is Necessary
• Tools & Materials for RV Window Installation
• How to Measure for a Replacement RV Window
• Step 1: Prepare the Window Opening
• Step 2: Verify the Window Fit
• Step 3: Prepare & Install the New Window
• Installing RV Side Glass vs. Full Window Units
• Common RV Window Installation Mistakes
• DIY vs. Professional RV Window Installation
• Choosing Replacement RV Windows & Glass
• Lippert RV Window & Glass Solutions
• Maintenance After RV Window Installation
• FAQs About RV Window Installation

RV window installation is the process of removing an existing window unit, preparing the wall opening, installing a new window with sealant and mounting hardware, and ensuring a watertight fit that maintains structural integrity and insulation.

Installing RV windows is a manageable DIY project for many owners and entry-level service technicians, but it requires precision. Small errors in measurement, sealing, or fastening can lead to water intrusion, wall delamination, or rattling during travel.

Key drivers for replacement include:

• Cracked or fogged RV side glass

• Seal failure or recurring leaks

• Frame corrosion or warping

• Insulation and comfort upgrades

• Cosmetic modernization

RV windows typically need replacement when glass cracks, seals fail, leaks appear, or frames become damaged and compromise insulation or structural stability.

• Visible cracks, chips, or shattered glass

• Persistent condensation between panes

• Water stains or interior wall softness

• Air drafts near windows

• Difficulty opening or closing frames

• UV damage or discoloration

Older units often fail gradually. Sealants dry out, butyl tape compresses, and frame fasteners loosen over time due to vibration and thermal expansion.

RV window installation requires measurement tools, fastener removal tools, sealing materials, and a compatible replacement window designed for the RV’s wall thickness and opening.

Core tools

• Tape measure

• Screwdrivers or drill/driver

• Plastic scraper or trim tool

• Utility knife

• Caulking gun

• Cleaning supplies

Materials

• Replacement RV window or RV side glass unit

• Butyl tape or installation gasket

• Exterior RV sealant

• Replacement screws if originals are corroded

Choosing components designed for RV use is critical. Automotive or residential materials often fail under vibration, temperature swings, and moisture exposure.

Measure the rough opening width and height from inside the frame, confirm wall thickness, and verify the replacement unit matches those dimensions exactly.

Measurement process

1. Remove interior trim ring if accessible.

2. Measure opening width and height at multiple points.

3. Confirm wall thickness for proper clamp-ring fit.

4. Verify window style: sliding, fixed pane, frameless, vented.

Avoid measuring only the visible glass area. RV windows mount to the wall opening, not the glazing dimensions.

RV window installation involves removing the old window, cleaning and prepping the opening, applying sealant, positioning the new unit, fastening it evenly, and testing for leaks.

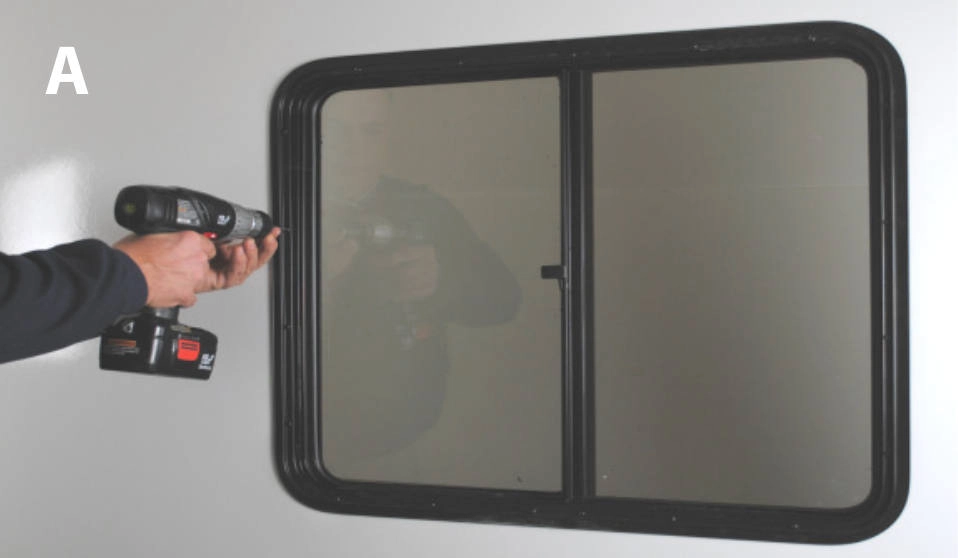

If you are installing a replacement window, you will begin by removing the old window. To do this, remove all the screws around the perimeter of the window frame (inside the vehicle). There will be approximately 12-20+ screws depending on the size of the window.

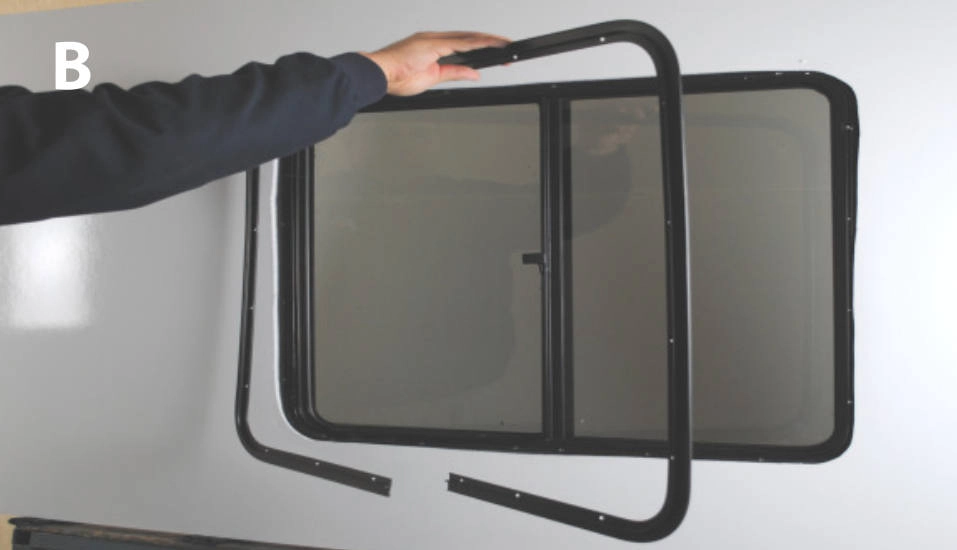

Once all screws are removed, the window can be pushed out of its opening. It is recommended that a second person stand outside with a hand lightly on the window to prevent the window from falling to the ground.

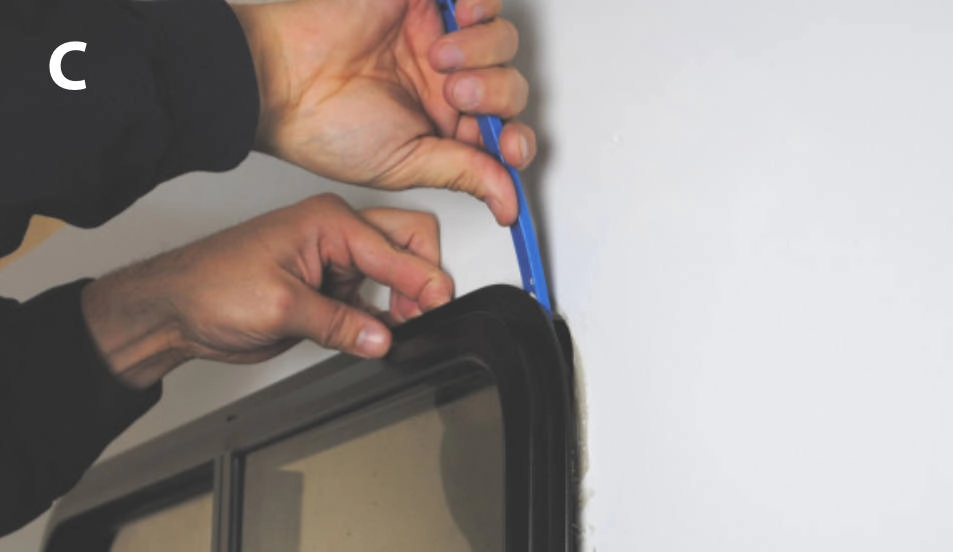

If the window is still firmly in place after all screws are removed, you can break the seal by sliding a thin putty knife under the exterior window flange and working your way around the window until loose. Be careful not to damage any paint or graphics that are on the vehicle’s sidewall.

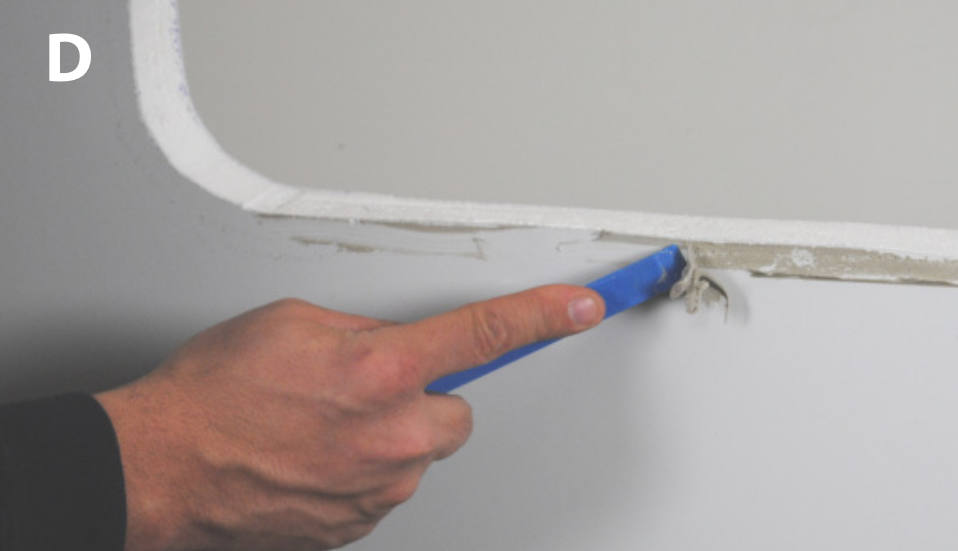

Once the old window is successfully removed, carefully remove any remaining sealant or tape that is stuck to the outside wall at the window opening.

• Test-fit the new window by simply placing it in the rough opening to ensure a proper fit. (Do not put the seal tape on the window at this point.)

• The exterior window flange should overlap the opening by 3/8" or more to provide a good seal to the sidewall. A small gap on the inside between 1/8"-1/4" is expected and will be covered by the trim ring when the installation is complete.

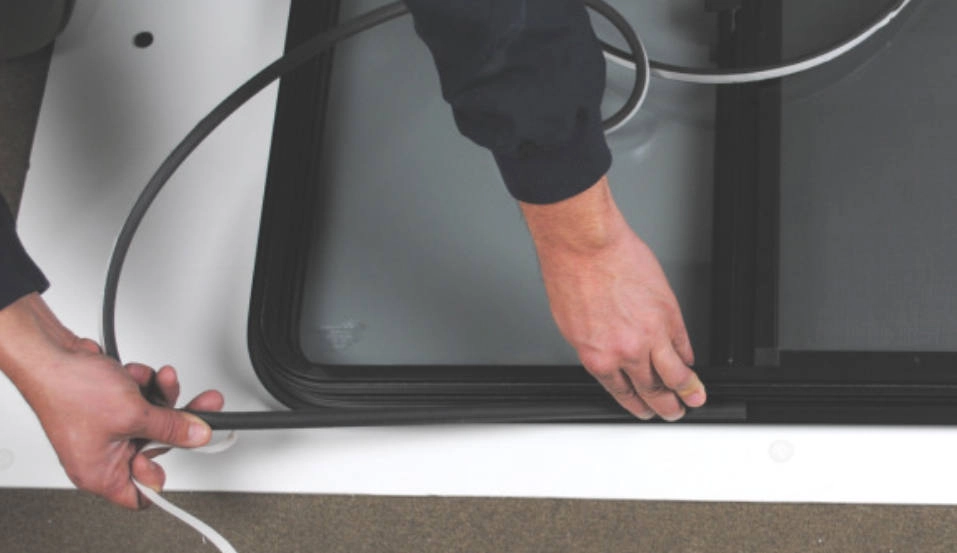

Lay the new window face down on a soft surface to avoid scratches and apply the bulb seal tape (included with the new window) around the flange. Start in the center of the bottom side of the window and apply the seal tape all the way around the perimeter until the ends meet, and trim flush. (Note: There should not be a gap where the seal ends meet.)

Place the window into the opening from outside the vehicle while a second person aligns the trim ring on the inside of the window. Begin fastening the trim ring with the provided screws, starting with the four corners first. Work your way around the perimeter, gradually tightening each screw as you go. This will slowly pull the trim ring and window together. (Note: Use only the screws provided with the new window, as longer screws could damage the window frame.)

It is recommended that you cap the seal or run a fine bead of caulk around the exterior perimeter of the window to provide an additional barrier to the elements.

Replacing RV side glass alone involves removing glazing and reseating new glass within the existing frame, while full window replacement includes removing and reinstalling the entire assembly.

Glass-only replacement

• Lower cost

• Faster install

• Retains original frame

Full unit replacement

• Better for structural or seal issues

• Allows insulation upgrades

• Eliminates frame corrosion risks

When the frame is intact and only the pane is damaged, side glass replacement may be sufficient. When leaks, warping, or hardware issues exist, replacing the entire window is typically more reliable.

Most installation failures result from inaccurate measurements, inadequate sealing, uneven fastening, or using incompatible materials.

Frequent issues

• Mis-measured openings

• Gaps in butyl tape

• Over-tightened screws

• Sealant applied incorrectly

• Failure to check wall damage

Water intrusion is the most costly outcome. Moisture can migrate behind walls and cause structural deterioration long before visible signs appear.

DIY installation is viable for experienced owners with proper tools, while professional installation is recommended for structural damage, large windows, or multi-pane replacements.

DIY is best when:

• Replacing same-size window

• Wall structure is intact

• Tools and helpers are available

Professional installation is best when:

• Frame or wall damage exists

• Custom windows are required

• Large or heavy windows are involved

• Multiple units are replaced

Select RV windows based on exact fit, wall compatibility, insulation performance, durability, and manufacturer support.

Selection criteria

• Opening size and wall thickness

• Frame material

• Tint and UV protection

• Ventilation features

• Replacement part availability

Quality components simplify installation and improve longevity.

Lippert RV window and glass products are designed for compatibility, durability, and straightforward replacement across many RV models and configurations.

Replacement solutions include:

• Complete window assemblies

• RV side glass replacements

• Frame and hardware components

These systems support maintenance, upgrades, and repairs without requiring full structural modification.

Regular inspection and seal maintenance extend the life of RV windows and prevent leaks.

Maintenance checklist

• Inspect seals every season

• Clean tracks and weep holes

• Check fasteners annually

• Reseal as needed

Proactive maintenance reduces repair costs and improves comfort.
