How to Release a Stuck 5th Wheel Hitch

A 5th wheel hitch should connect and disconnect with confidence every time. When the jaws won’t open, the pin box feels stuck, or the whole setup refuses to let go, it usually means something in the system is under strain or starting to wear out. A stubborn hitch is more than a moment of frustration. It can point to alignment issues, aging components, or a connection that is no longer working the way it was designed to. This guide walks you through what causes a 5th wheel hitch to get stuck, how to free it safely, and how to tell when the problem signals something bigger. It also helps you understand when it might be time to replace worn parts or move to a modern, smoother solution like the CURT Helux pin box.

A stuck 5th wheel connection is almost always the result of pressure, alignment issues, or wear in the system. These problems can develop slowly over time or appear suddenly when the truck and trailer are parked at an awkward angle. Understanding the root causes makes it much easier to diagnose the situation and free the connection without forcing anything or causing damage.

When the truck and trailer are not sitting level, or when the landing gear is not adjusted correctly, the full weight of the trailer can settle unevenly onto the kingpin. This extra load clamps the jaws tightly around the pin and makes it feel like the release handle is welded shut. Even a small tilt can create enough pressure to bind the system, especially on older hitches or setups with worn components.

What happens:
Uneven ground or incorrect landing gear height causes the full weight of the trailer to settle onto the kingpin.

Why it causes sticking:
The jaws are pinched under pressure and cannot relax enough to open.

What to look for:

• Trailer leaning forward or backward

• Hitch plate visibly carrying too much load

• Release handle feels locked or immovable

What to do:

• Raise the landing gear slightly to lift weight off the hitch

• If that does not work, lower the landing gear a little instead

• Adjust in small increments until the hitch head looks “floating” rather than weighted

• Reattempt the release only after pressure is off the jaws

The constant cycle of towing, disconnecting, and backing under the trailer slowly wears down the internal parts of a 5th wheel hitch. Jaws lose their crisp edges, locking bars lose tension, and moving parts do not hold the pin as cleanly as they once did. When this happens, the kingpin may not sit perfectly in place, which leads to uneven pressure and stubborn releases. This kind of wear sneaks up on most owners and becomes more common as a hitch ages.

What happens:
Repeated towing wears down the internal components that grip and release the kingpin.

Why it causes sticking:
Uneven or weakened jaws increase pressure points and trap the pin.

What to look for:

• Jaws not closing cleanly

• Grinding noises

• Metal shavings

• Release handle performance inconsistent over time

What to do:

• Inspect the jaws for visible wear or damage

• Clean out old grease and apply fresh lubrication

• Check if the jaws fully wrap the kingpin during coupling

• If wear is significant, plan for repair or replacement. Repeated sticking here is one of the strongest signs it is time to upgrade

Friction is a major culprit in stuck hitches. Rust buildup, dust, dried grease, or road grime can collect on the kingpin or inside the jaw mechanism. When the surfaces are not able to slide freely, the hitch binds under even normal towing loads. A sticky or gritty feel when coupling or uncoupling is a clear warning sign that the components need cleaning and lubrication before things get worse.

What happens:
Rust, dirt, and dried grease build up on contact surfaces.

Why it causes sticking:
Friction increases, making it hard for the kingpin to slide free of the jaws.

What to look for:

• Rust on the kingpin or hitch head

• Hardened or dirty grease

• A gritty or jerky feel when connecting or disconnecting

What to do:

• Clean the hitch head, jaws, and kingpin thoroughly

• Re-grease or install a fresh lube plate

• Remove any visible rust with approved products

• Keep the hitch lubricated regularly to prevent future sticking

Most people focus on the hitch head, but the kingpin and pin box can wear down as well. A worn kingpin may not sit squarely in the jaws, or it may have flat spots that cause the hitch to grip at an angle. Pin boxes that have loosened bolts, flexing metal, or minor damage can shift under load and trap the pin in place. Once the alignment is off, even slightly, the hitch struggles to release smoothly.

What happens:
Kingpins can develop flat spots. Pin boxes can loosen or flex from repeated stress.

Why it causes sticking:
The kingpin no longer sits square in the jaws, which traps it when pressure shifts.

What to look for:

• Visible wear on the kingpin

• Loose bolts on the pin box

• Flex or movement where the pin box meets the trailer

• Uneven contact marks

What to do:

• Tighten pin box hardware to factory specs

• Inspect the kingpin for wear or deformation

• If the kingpin is worn, replacement is required for safe towing

• If the pin box itself is aging or flexing, upgrading to a modern system like the CURT Helux is often the best long-term fix

Releasing the hitch requires the kingpin to be neutral, with no forward or backward pressure. If the truck is still pushing into the pin or the trailer is tugging backward, the jaws cannot relax enough to open. This often happens on uneven ground or when the truck does not stay still during the uncoupling process. Even a gentle roll can load the system and make the release handle feel stuck.

What happens:
Forward or backward pressure loads the pin and prevents the jaws from relaxing.

Why it causes sticking:
Even light movement from the truck or trailer is enough to bind the mechanism.

What to look for:

• The truck moves slightly when you shift into park

• The trailer rolls a bit when you drop the landing gear

• The hitch head is angled or pulled forward

What to do:

• Chock the trailer wheels to eliminate movement

• Put slight reverse pressure on the truck, then shift to neutral

• Ensure the truck and trailer are still before pulling the release handle

• Level the truck and trailer as much as possible if parked on a slope

A stuck 5th wheel hitch is one of the most frustrating problems a trailer owner can face. It can turn a simple uncoupling into a tense, time-consuming task, and if handled incorrectly, it can damage the hitch, kingpin, or pin box. In most cases, jams happen because of pressure on the kingpin, misalignment between the truck and trailer, or normal wear in the hitch components. The good news is that most stuck hitches can be released safely if you know the right steps. The goal is to relieve tension, move the mechanism smoothly, and avoid forcing anything that could make the problem worse. The following step-by-step instructions will guide you through freeing your hitch so you can get back on the road safely and confidently.

Why it matters:
The most common cause of a stuck hitch is the trailer weight pressing down on the kingpin, locking the jaws tight. Reducing this weight is often enough to free the mechanism.

How to do it:

• Raise the trailer landing gear slightly until the weight is mostly off the truck.

• Move the landing gear up or down in small increments of ½–1 inch.

• Watch the hitch plate. When it “floats” freely and is no longer pressing into the jaws, try pulling the release handle again.

Pro tip:
Sometimes lowering the trailer slightly instead of raising it can help realign the kingpin and make release easier. The key is to relieve as much tension from the jaws as possible.

Why it matters:
Even minor movement can keep the jaws under tension. A rolling trailer or truck can prevent the mechanism from releasing, even if the kingpin is unloaded.

How to do it:

• Place wheel chocks under the trailer wheels.

• Put the truck in park and set the parking brake.

• Double-check that nothing can move before attempting to release the hitch.

Pro tip:
Safety first. Chocking the trailer and truck ensures the system is stable and prevents accidental shifting while you work on freeing the hitch.

Why it matters:
Sometimes the kingpin is just slightly bound or stuck in the jaws. A small movement can relieve pressure and allow the release to work.

How to do it:

• Apply light manual brake pressure.

• Shift the truck into reverse just briefly to remove any forward load.

• Return the truck to neutral and try the release handle again.

Pro tip:
Do not force the hitch. Gentle movements are enough. Think of it as loosening a tight bolt rather than hammering it open.

Why it matters:
Friction from rust, dirt, or dried grease can make a smooth system stick. Proper lubrication reduces drag and helps the jaws release freely.

How to do it:

• Clean the kingpin and hitch jaws, removing any dirt or rust.

• Apply a proper hitch lube plate, lithium grease, or a dedicated kingpin lubricant.

• Operate the release a few times to distribute the lubricant.

Pro tip:
If lubrication temporarily fixes the issue, it is often a sign that your hitch is wearing out. Make a note to inspect it more closely before your next trip.

Why it matters:
Mechanical wear or damage can prevent the jaws from releasing, and repeated forcing can make the problem worse. Catching it early protects both your truck and trailer.

What to inspect:

• Jaw edges for chips, cracks, or rounded surfaces

• Locking bar mechanism for wear or bending

• Kingpin surface for flat spots or scratches

• Pin box mounting bolts and welds

• Pivot points on the hitch head

Pro tip:
If you see anything bent, chipped, loose, or excessively worn, it usually means the hitch is nearing end-of-life. Plan for replacement before it becomes a safety issue.

Why it matters:
Extreme angles, either front-high or front-low, create tension on the jaws and make release difficult. Proper leveling prevents pressure from binding the mechanism.

How to do it:

• Park the trailer on as level a surface as possible.

• Adjust the landing gear before attempting uncoupling.

• Ensure the trailer is not pulling forward or backward during release.

Pro tip:
Even a small slope can make a difference. Whenever possible, prioritize level parking for both coupling and uncoupling.

A single jam can happen to anyone. Maybe the angle wasn’t right, maybe the landing gear wasn’t level, or maybe a bit of grit got into the mechanism. But when the same issue starts happening over and over, it’s usually telling you something. A hitch that consistently binds or refuses to release is signaling that the internal components may be worn, fatigued, or no longer operating the way they were designed to. Over time, the repeated stress of towing takes a toll, and those subtle signs eventually turn into full-blown reliability problems.

Frequent binding during uncoupling

If uncoupling has turned into a predictable struggle, whether it’s tension on the kingpin, jaws that won’t open smoothly, or a “sticky” feel every time you pull the release handle, that’s a clear sign the hitch is no longer operating within normal tolerances. Consistent binding usually means the mechanism isn’t distributing pressure evenly anymore. What starts as occasional resistance becomes a pattern, and patterns indicate wear that won’t correct itself.

Jaws that don’t fully close or fail to visually confirm

A jaw system that doesn’t “snap” into place or fails to show a clear locked indication is one of the most serious warning signs. This often happens when internal wear creates uneven engagement or when the mechanism no longer cycles through its full range of motion. A jaw that can’t reliably close is also a jaw that may not reliably release. And either scenario increases the risk of both jams and unsafe coupling.

Excessive metal shavings, rust, or “crunching” noises

Metal debris, rust flakes, and grinding noises point to internal breakdown. The hitch components are rubbing, dragging, or wearing against each other in ways they weren’t designed to. Once metal starts shedding, the problem usually accelerates since debris makes moving parts even rougher. A healthy hitch should move quietly and smoothly. Any gritty or metallic sound is a sign that the mechanism is aging past a safe service life.

Damage or wear on the kingpin

A worn or scored kingpin can create constant release problems because it no longer sits perfectly centered in the jaws. Even small deformities cause uneven pressure that leads to binding. And once the kingpin starts wearing, the hitch jaws typically wear faster too, turning a single problem area into a system-wide issue. If your kingpin shows marks, flat spots, or visible damage, it’s time to inspect the entire connection system.

An aging hitch with outdated jaw technology

Older hitch designs simply don’t manage pressure, articulation, or wear the way modern systems do. Early jaw mechanisms can bind more easily, lack smooth articulation, and are prone to stress-related wear. If your hitch has been in use for many years or predates modern articulation designs, repeated jams may be less about maintenance and more about the limits of old technology.

Jams as an early warning

Sticking, binding, and uneven releases are often the very first symptoms of a hitch nearing the end of its usable life. At this stage, continuing to fight with the mechanism only delays the inevitable. A hitch that jams repeatedly isn’t just inconvenient. It’s a sign that your towing setup is no longer operating safely or efficiently.

When your 5th wheel hitch starts sticking, binding, or showing its age, you can keep fighting the symptoms… or you can fix the cause. Most recurring issues come from a fundamental mismatch between how traditional pin boxes handle movement and how modern RVs are actually used. Over time, the constant push, pull, twist, and vibration generated while towing can overwhelm older designs. The result is binding, uneven jaw pressure, unpredictable releases, and a hitch that feels like it’s working against you instead of with you.

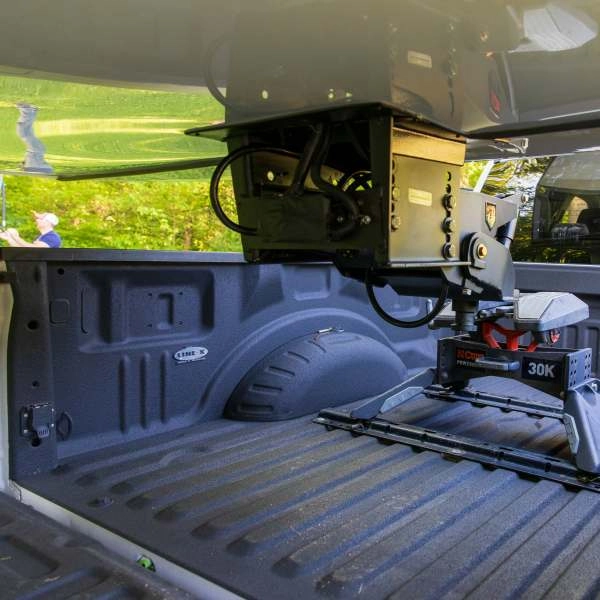

This is where the CURT Helux upgrade steps in. Instead of trying to patch problems with grease or adjustments, Helux replaces the source of the stress, giving you a smoother, smarter connection that prevents those frustrations from happening in the first place. For RV owners dealing with stuck jaws, noisy articulation, or general hitch fatigue, moving to a Helux isn’t just a convenience upgrade. It’s a genuine performance and safety improvement that transforms how your entire towing setup behaves.

Here's what sets Helux apart from the competition:

The kingpin moves naturally during towing

Traditional pin boxes often force the kingpin into harsh, repetitive contact against the hitch jaws. Over time, this builds tension and creates grooves, flat spots, or uneven wear, all of which contribute to sticking during uncoupling.

The Helux absorbs and softens that motion so the kingpin can glide more freely. When forces are dispersed instead of being driven into a single rigid point, the hitch connection stays aligned and the jaws don’t end up fighting against pressure at release time. It’s a smoother towing experience that directly translates into easier uncoupling.

The hitch head experiences less binding

Most binding happens because the hitch head is forced into awkward angles during towing or while backing into a campsite. When the head can’t realign itself naturally, the jaws take the hit — literally — and lock up under uneven pressure.

Helux is designed to minimize this. Its articulation handles vertical and fore-aft shock more effectively, letting the hitch head stay neutral instead of getting jammed at an angle. When you go to uncouple, the jaws are under less strain and open more consistently. You don’t have to rock the truck, re-level the trailer, or “coax” the load out of the connection.

The release mechanism stays consistent over time

With traditional pin boxes, performance fades gradually. You may not notice the wear at first — until one day you can’t get the jaws to release without a 10-minute ritual of chocking, adjusting, rocking, and trying again.

Helux slows that wear dramatically. Its smoother motion reduces the stress that normally fatigues jaw mechanisms, bushings, and pivot points. Because the system stays aligned and moves as intended, the release handle operates with the same clean, predictable feel even after years of use. That kind of consistency isn’t just convenient. It’s confidence-building when you’re traveling far from home.

Wear is dramatically reduced compared to traditional pin boxes

Wear is the #1 enemy of a smooth 5th wheel connection. Once wear starts, it accelerates quickly: more slop creates more binding, which creates more stress, which creates even more wear.

The Helux system slows that entire cycle down. Its engineered damping reduces the metal-on-metal punishment that destroys jaws and kingpins. The result is a connection that stays tighter, performs better, and lasts longer. This means fewer repairs, fewer surprises at the campground, and fewer moments where you’re stuck trying to release a hitch that won’t cooperate.

For owners routinely dealing with sticking, binding, or unpredictable coupling behavior, the Helux upgrade isn’t just another accessory. It’s the solution. It removes the mechanical weak points that cause problems in the first place and replaces them with a refined connection engineered for modern towing demands.

You get smoother towing. You get cleaner uncoupling. You get a hitch system that works with you, not against you. And perhaps most importantly, you eliminate the stress and frustration of constantly wondering whether your hitch will release when you need it to.

If your current setup is showing its age, the CURT Helux is the kind of upgrade that pays off every time you hit the road.

A stuck 5th wheel hitch is frustrating, but the root cause is always mechanical pressure, wear, or misalignment. This guide can help you release a jam in the moment, but if the problem repeats, it may be time to replace worn components or upgrade your entire connection system.

A modern solution like the CURT Helux offers smoother articulation, reduced wear, and a more dependable connection, so you spend less time fighting your hitch and more time enjoying the open road with your family.
