How to Choose the Right 5th Wheel Pin Box Size

When your RV starts riding rough, your hitch feels sloppy, or your trailer simply doesn’t tow like it used to, the culprit is often the pin box. Over time, these components wear out, experience stress cracks, or lose the ability to manage the forces between truck and trailer. When you’ve reached the point where replacing your pin box makes sense, choosing the correct 5th wheel pin box size is the most important step in restoring proper towing performance. This guide walks you through every factor that matters: measurements, bolt patterns, capacity ratings, frame fitment, hitch alignment, turning clearance, and more. And because replacement time is also upgrade time, we’ll explain why many RV owners choose to improve their towing experience by stepping up to the CURT Helux rather than reinstalling a basic OEM-style pin box.

Your 5th wheel pin box does far more than connect your trailer to your truck. It sets the foundation for how your entire towing system behaves on the road. Every trailer frame is engineered around a specific pin box footprint, bolt pattern and weight rating. When you install the wrong size, even by a small margin, the effects ripple throughout your towing setup.

A correctly sized pin box ensures structural alignment, safe load distribution and predictable handling. A mismatched one can introduce stress, imbalance and unsafe towing characteristics you may not immediately notice until they become real problems. Here’s why proper sizing is critical:

Hitch Engagement

The kingpin must enter the hitch jaws at the correct angle and height. If the pin box is too tall, too short, or misaligned, the hitch may bind, partially latch, or require repeated adjustment when coupling. Proper sizing ensures that the kingpin slides directly into the hitch jaws and locks securely.

If your pin box is the wrong size:

• The kingpin may sit too high or too low

• You may have to “chase” the hitch when coupling

• The jaws may not fully latch, creating a dangerous partial connection

Correct sizing ensures every connection is smooth, centered and secure.

Ride Height

Trailer attitude is critical for stability. A pin box that is too high or low can tilt the trailer forward or backward, reduce clearance between bed rails and the trailer overhang, and unevenly distribute weight across the axles. Correct sizing keeps your trailer level, improving control and reducing wear on suspension components.

A pin box that’s too tall or too short throws off your trailer’s attitude, causing:

• Excessive front-to-back trailer lean

• Reduced bed rail clearance

• Uneven tire loading

• Poor weight distribution onto the axles

Proper sizing keeps your trailer riding flat and stable, which improves handling and reduces wear.

Turning Clearance

Pin box length affects turning clearance, particularly for short-bed trucks. If the pin box is too long or too short, it can limit the turning radius, increase the risk of cab contact, and reduce maneuverability in tight spaces. Choosing the correct size ensures sufficient clearance for safe and comfortable turns.

The wrong pin box size can:

• Limit your turning angle

• Increase the risk of cab-to-cap collision

• Reduce maneuverability in tight campgrounds

Sizing correctly gives you the clearance needed for comfortable, confident turns.

Frame Integrity

Trailer frames are reinforced for specific mounting points. A misaligned or incorrectly sized pin box can introduce twisting or concentrated stress that leads to fatigue or cracking. Correct sizing distributes towing forces across reinforced areas, protecting your frame for long-term durability.

Installing a pin box that doesn’t match perfectly may:

• Transfer forces into unsupported areas of the frame

• Introduce twisting or flexing at the mounting wings

• Create metal fatigue or stress cracks over time

A correct fit means the towing forces are distributed exactly the way the manufacturer engineered.

Overall Towing Stability

The pin box is central to managing forces between the truck and trailer. Incorrect sizing can cause excessive chucking, sway, vibration, and unpredictable handling. The right pin box ensures a balanced, stable, and safe connection on every tow.

The wrong size can lead to:

• Excessive front-to-back jerking

• Increased trailer sway

• Harsh road feedback through the truck

• A feeling of instability at highway speeds

When you size correctly, the pin box aligns with both the frame and the hitch, creating a balanced, predictable towing connection.

The simplest way to identify the correct 5th wheel pin box size is by locating the model number on your current unit. Most pin boxes have a label or stamp indicating the model, such as 1621, 1716, or 1116. Matching the model ensures the correct footprint, bolt pattern, and load rating.

If the label is missing or unreadable, take careful measurements of the horizontal and vertical bolt spacing, kingpin-to-bolt distance, overall length, and height from the kingpin plate to the mounting flange. These measurements allow you to identify the correct pin box and ensure a direct-fit replacement.

Where to Find Your Current Model Number

• On the side or bottom surface of the pin box

• Printed on a label near the mounting wings

• Stamped into the steel on older units

• In your trailer’s documentation or owner’s manual

• Through your trailer manufacturer’s support team

If you can locate this information, selecting a replacement is straightforward. The bolt pattern, footprint, and capacity are predetermined, and you can simply choose a compatible replacementor upgrade to the CURT Helux if your model is supported.

If you can’t locate a label or your pin box is too weathered to read, measurements will tell the full story.

Measuring your existing pin box is the next-best method for determining the correct size. These measurements help identify the bolt pattern and footprint so you can match it to a direct replacement.

1. Horizontal Bolt Pattern

Measure from the center of one mounting bolt to the center of the bolt directly across from it.
This determines the width of the mounting wings.

2. Vertical Bolt Pattern

Measure the center-to-center spacing between bolt rows going up and down the wings.
Most frames use consistent spacing, but variations exist between manufacturers.

3. Kingpin to Rear Bolt-Hole Distance

Measure from the kingpin center back to the first row of mounting bolts.
This dimension determines how the pin box sits under the trailer and affects hitch engagement and bed-rail clearance.

4. Pin Box Length

Measure the distance from the trailer mounting point to the kingpin.
Length influences turning clearance and articulation.

5. Height From Kingpin to Mounting Flange

This determines how high or low the trailer will ride behind the truck.

Record these measurements clearly and take photos. They’re extremely helpful when cross-referencing replacement charts.

Even if two pin boxes share the same footprint, they may have different load ratings. Always verify the trailer’s:

• GVWR (Gross Vehicle Weight Rating)

• Pin weight when loaded (usually 15–25% of total weight)

• Usage type (occasional towing vs. full-time RVing vs. heavy-cargo hauling)

A replacement pin box must meet or exceed these ratings. Doing so ensures safe operation and reduces stress on both truck and trailer components.

Even with the correct footprint, you should double-check:

• The shape and angle of your trailer’s mounting wings

• Bed rail clearance at full turn

• Clearance between the pin box and the truck tailgate

• Short-bed truck turning constraints

• The trailer’s overhang design

Matching the pin box footprint to the frame ensures safe installation, but matching the overall geometry ensures proper towing performance.

Before finalizing your pin box replacement, it is essential to verify that the kingpin geometry aligns properly with your hitch setup. The kingpin is the primary point of connection between your trailer and truck, and even small variations in height, angle, or placement can affect hitch engagement, trailer stability, and overall towing safety. Ensuring proper alignment prevents issues such as binding when coupling, uneven weight distribution, or excessive stress on the hitch jaws. Additionally, confirming that the kingpin height and orientation are compatible with your specific hitch type—whether standard, sliding, or automatic slider—helps maintain smooth operation during turns, braking, and acceleration. Taking the time to check these measurements before installation eliminates guesswork, reduces wear on your towing components, and ensures a secure, reliable connection that performs consistently under all driving conditions.

Key considerations include:

• Standard 2" SAE kingpin fitment

• Hitch height adjustment range

• Hitch type (conventional, sliding, auto-slider, air-ride, etc.)

• Bed rail and tailgate clearance at full lock

• Proper trailer attitude once coupled

If your current pin box shows signs of wear, produces a harsh ride, or exhibits stress on the mounting wings, replacing it presents an opportunity to enhance your entire towing setup. A worn or fatigued pin box can transmit vibration, chucking, and uneven forces from the road directly into your trailer and truck, creating discomfort and increasing wear on other components over time. Addressing the issue with the right replacement restores stability, reduces stress on the trailer frame, and ensures your hitch engages cleanly every time.

A standard OEM-style pin box provides the same rigid steel design that originally came with your RV. While it restores basic functionality, it does not address ride quality or reduce the forces that lead to frame fatigue and trailer instability. Choosing a pin box with advanced shock-absorbing features improves control, smooths out road impacts, and preserves both your trailer and truck suspension. This approach transforms the towing experience from simply functional to consistently stable, safer, and more comfortable on every trip.

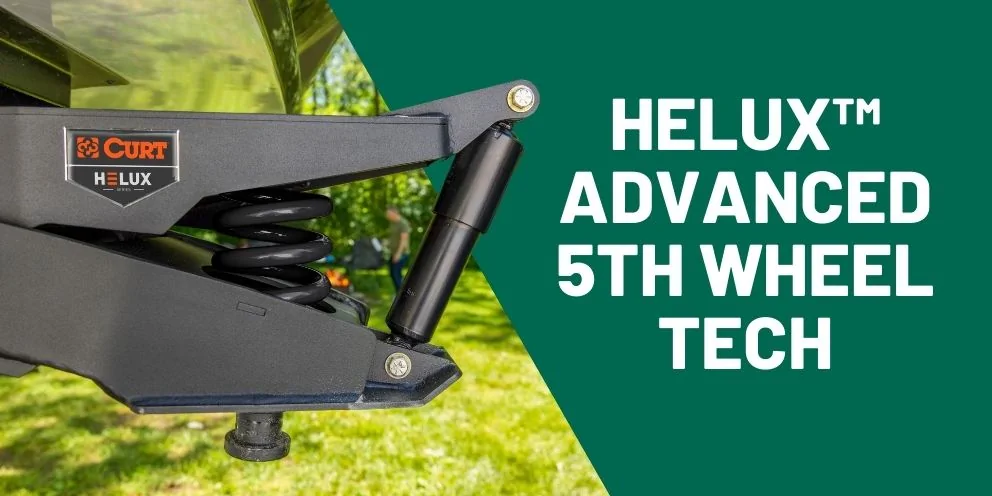

When your pin box is due for replacement, upgrading to the CURT Helux provides benefits that go far beyond simply restoring function. Helux is engineered to handle the dynamic forces of towing more effectively than a standard OEM-style unit. Its advanced shock-absorbing design reduces chucking, front-to-back jarring, and vibration, which in turn lessens wear on your trailer frame, hitch, and truck suspension. This results in a smoother, more stable connection between truck and trailer, improving both safety and control.

The design of Helux also optimizes load distribution. By managing the stresses that occur during acceleration, braking, and cornering, it protects structural components from premature fatigue. Over time, this can extend the lifespan of your trailer frame, the pin box mounting points, and even your tires and suspension components. For RVers who tow frequently or navigate uneven roads, these improvements make a noticeable difference in handling and overall towing performance.

Ultimately, choosing Helux means transforming the towing experience from merely functional to consistently controlled and stable. You gain confidence in your rig’s performance, reduce stress on critical components, and improve comfort for everyone on board. If you’re already removing your old pin box, choosing Helux is the best long-term move you can make. The difference is immediately noticeable the first time you pull out onto the highway.

Before ordering your new pin box, it’s important to verify several key factors to ensure proper fit, safe operation, and compatibility with your trailer and truck. Taking the time to confirm these details now can prevent installation issues, reduce wear on your components, and ensure a smooth towing experience.

Identify Your Current Pin Box Model or Take Accurate Measurements

Locate the model number on your existing pin box, or if it is unreadable, measure the horizontal and vertical bolt spacing, kingpin-to-bolt distance, overall length, and height from the kingpin plate to the mounting flange. These measurements determine the correct 5th wheel pin box size and footprint.

Verify Trailer GVWR and Loaded Pin Weight

Confirm that the replacement pin box is rated for your trailer’s Gross Vehicle Weight Rating (GVWR) and pin weight. A pin box with insufficient capacity can compromise safety and stability. Matching or exceeding these ratings ensures reliable towing under all conditions.

Check Frame Compatibility and Clearance

Examine your trailer frame to ensure the bolt pattern and mounting wings align with the new pin box. Consider bed rail clearance, tailgate clearance, turning radius, and short-bed versus long-bed truck compatibility. Proper alignment prevents stress on the frame and allows for smooth, unrestricted movement.

Confirm Kingpin and Hitch Alignment

Verify that the kingpin geometry matches your hitch setup. Correct height, angle, and orientation prevent binding, uneven stress on the hitch jaws, and instability while towing. This step is crucial for predictable performance and safety.

Decide Between Standard Replacement or Helux Upgrade

Determine whether you want a direct OEM-style replacement or an upgrade to a premium pin box like Helux. Upgrades offer smoother ride quality, reduced chucking, better weight distribution, and long-term durability, making them a smart choice for worn or older pin boxes

By following this checklist, you can confidently select a pin box that fits correctly, supports your trailer’s weight safely, and enhances your overall towing experience. Taking these steps now saves time, reduces potential headaches during installation, and ensures your trailer performs optimally on the road.

Choosing the correct 5th wheel pin box size is one of the most important decisions you can make for safe, stable, and predictable towing. A properly sized pin box ensures that your trailer rides level behind your truck, that your kingpin engages cleanly with the hitch, and that all forces are distributed correctly across the trailer frame. By taking the time to measure your existing footprint, verifying capacity ratings, and accounting for how pin box length and height impact turning clearance, you remove guesswork from the replacement process and you can feel confident that your towing setup will perform reliably under all conditions.

But selecting the right size is only part of the story. When your pin box has reached the end of its service life, you have a unique opportunity to go beyond a simple replacement. Upgrading to something like the CURT Helux does more than just restore function. It will transform your entire towing experience from start to finish. Helux’s advanced shock-absorbing design smooths out road chatter, reduces chucking and jarring, and keeps both truck and trailer more stable over uneven terrain. You’ll notice the difference immediately on the road: smoother starts and stops, reduced sway, and a trailer that feels more connected to your truck. For anyone replacing a worn or outdated pin box, stepping up to Helux is the smart move.
