How to Automatically Level Your RV

Leveling your RV is one of the first and most important steps when setting up at a campsite. A properly leveled RV isn’t just more comfortable — it’s safer and protects your appliances, slide-outs, and plumbing systems from unnecessary strain.

Manual leveling with blocks and jacks can take time and precision. That’s why more RV owners are turning to automatic RV leveling systems, which simplify the process and ensure consistent results every time. As a leading innovator in RV technology, Lippert designs systems that make leveling easier, faster, and more reliable, giving you more time to enjoy your trip.

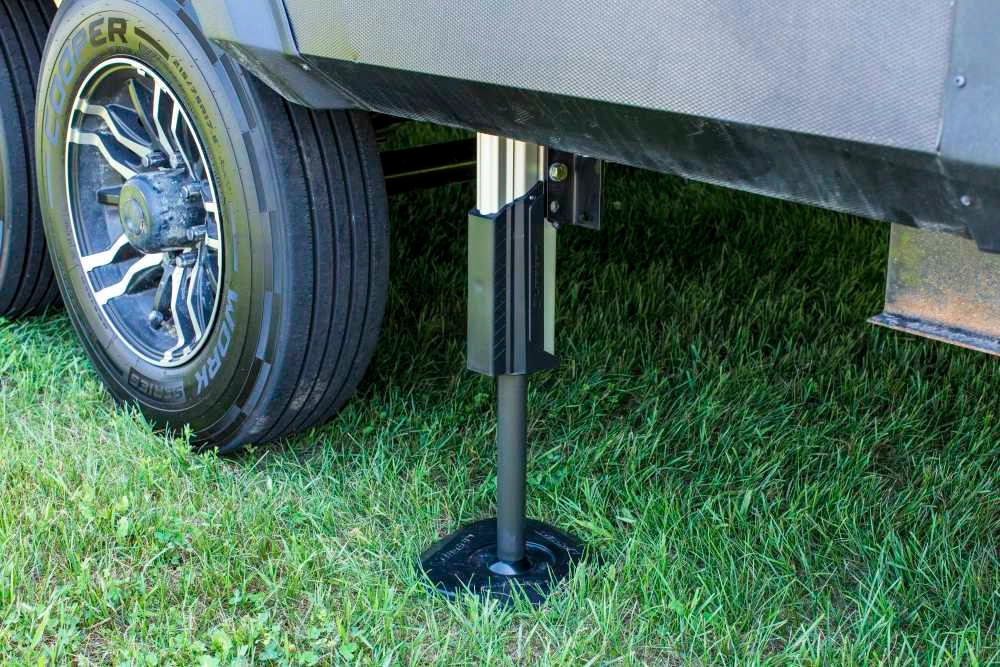

An automatic RV leveling system is an integrated setup of jacks, sensors, and controls that automatically adjust your RV’s stance until it’s perfectly level. Instead of manually cranking jacks or stacking blocks, you simply press a button, and the system does the work.

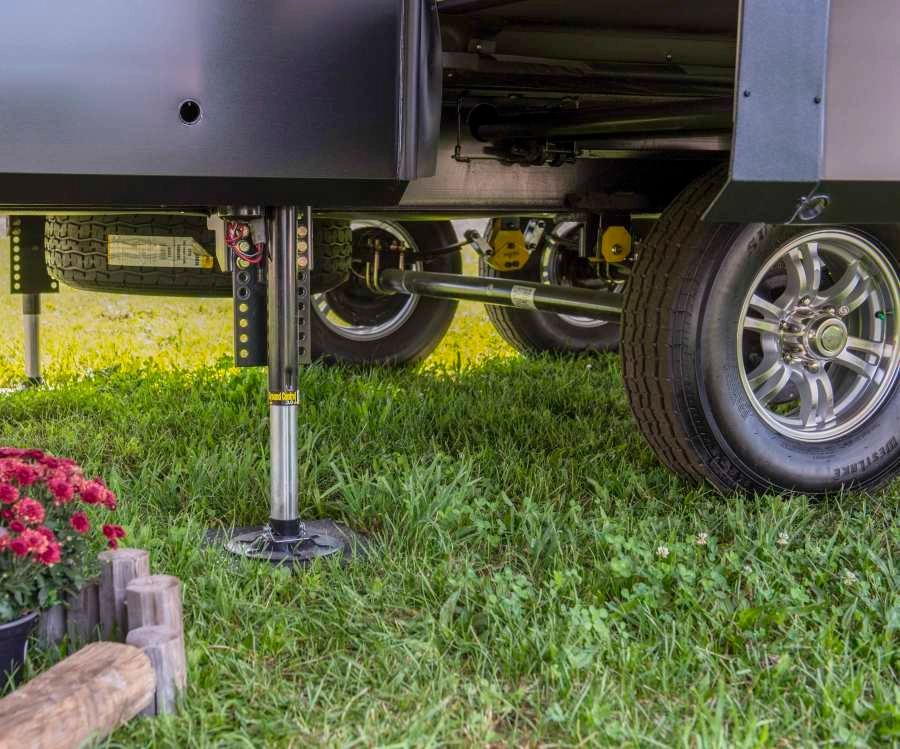

These systems use electric or hydraulic jacks placed at key points under the RV. Built-in sensors detect which corners are high or low, and the control module directs each jack to move until the RV reaches the correct balance.

Lippert offers two primary aftermarket solutions for different RV types:

• Ground Control® for 5th Wheels – Designed for 5th wheel RVs, this electric system offers automatic, one-touch leveling with durable construction.
• Ground Control® TT – Engineered specifically for travel trailers, this electric system provides smooth, automatic leveling and stabilization.

Each system is built for precision and ease of use, combining Lippert’s engineering with the convenience RVers value most.

When you press the auto-level button, the system’s control panel activates a sequence of sensors and jacks. These sensors measure the angle of the RV, detecting how uneven the surface is.

The jacks then extend or retract to correct the imbalance, one section at a time.

There are two main types of automatic leveling systems:

• Electric Systems – Powered by the RV’s 12V electrical system, these setups are common on travel trailers and mid-size 5th wheels.
• Hydraulic Systems – These use pressurized fluid for faster, higher-capacity lifting, often found on large 5th wheels or motorhomes.

The process usually takes just a few minutes. Once complete, your RV will be level front-to-back and side-to-side, and the system will hold it securely in place.

Leveling your RV automatically is simple and efficient. Here's an example of how the process might go:

1. Park on a relatively level surface. Choose a spot with firm ground whenever possible.
2. Chock your wheels. Even though the system stabilizes the RV, wheel chocks prevent any rolling during setup.
3. Turn on your leveling control panel. This panel is typically located inside a storage bay or near the entrance.
4. Press the “Auto Level” button. The system will lower the jacks and begin adjusting each corner automatically.
5. Wait for the process to complete. When the system finishes, it will indicate that your RV is level.
6. Check stability before moving inside. Confirm that the RV feels solid and that all jacks are properly in contact with the ground.

Pro Tip: Use jack pads under your jacks, especially on soft or uneven terrain. Pads distribute weight more evenly and protect the campsite surface from damage.

Switching to an automatic system offers several advantages over manual leveling methods:

• Convenience: Level your RV in minutes with a single button press.
• Precision: Built-in sensors detect even small variations for consistent, accurate results.
• Safety: A properly leveled RV reduces stress on the frame, slide-outs, and appliances.
• Protection: Ensures refrigerators, plumbing systems, and tanks operate efficiently.
• Time Savings: Cut setup time significantly, especially when moving between multiple sites.
• Reliability: Durable components from trusted brands like Lippert ensure long-term performance and minimal maintenance.

For many RVers, the biggest advantage is consistency. Every setup is accurate, repeatable, and hands-free.

To keep your automatic leveling system operating smoothly, it’s important to perform regular maintenance and inspections. Begin by checking all jacks and mounting brackets for dirt, rust, or debris buildup that could interfere with movement. Clean the control panel periodically and make sure it stays protected from moisture or extreme temperatures.

If your RV uses a hydraulic leveling system, monitor the fluid level and top it off as recommended in your owner’s manual. Electrical connections should also be inspected for signs of corrosion or looseness, as these can affect performance over time.

Occasionally, the system may need recalibration to maintain precise leveling, especially after heavy use or travel on rough roads. If you notice uneven results or an error on the control panel, consult your Lippert manual or contact the customer support team for detailed troubleshooting guidance. Replacement parts, technical diagrams, and service videos are readily available through the Lippert support site to help you keep your system in peak condition.

Can I add an automatic RV leveling system to my existing RV?

Many Lippert systems can be retrofitted onto compatible RVs. Check your frame type, available space, and electrical connections before installation. Learn more

What’s the difference between leveling and stabilizing?

Leveling ensures the RV is balanced front-to-back and side-to-side. Stabilizing minimizes movement when you walk inside the RV. Both are important for comfort and safety. Learn more

Do I need to recalibrate my system?

Occasional calibration may be needed to maintain accuracy. Refer to your Lippert manual for detailed instructions.

Is it safe to use an automatic system on uneven ground?

Yes, within limits. Always start on the most level surface available and use jack pads on soft or sloped ground for added stability.

An automatic RV leveling system takes the guesswork and effort out of campsite setup. With one touch, your RV is perfectly balanced, stable, and ready for use, so you can spend less time adjusting jacks and more time relaxing.

Lippert’s advanced systems combine cutting-edge technology with the durability and reliability RV owners expect.
