How to Adjust a 5th Wheel Pin Box

If your 5th wheel hitch isn’t fitting right or keeps hanging up when you try to uncouple, the issue often traces back to the pin box. A pin box that’s too high, too low, or slightly out of line can put the whole connection under stress. Over time, that stress makes the hitch harder to latch, harder to release, and harder on both your truck and trailer.

Adjusting the pin box is one of the most effective ways to bring the system back into balance. A correct adjustment sets the trailer at the right height, puts the kingpin in the proper position, and helps the hitch jaws operate the way they were designed to. This means cleaner hookups, less strain during turns and braking, and fewer surprises when you try to release the pin.

This guide walks through each step of the adjustment process so you know what tools you’ll need, what to look for, and how to handle the work safely. It also explains when it’s worth calling in a technician. Especially if you’re seeing wear, cracking, or ongoing binding that doesn’t clear up after adjustment. And if your pin box is getting older or you’re dealing with the same problems over and over, this is also a good time to look at upgrading your pin box to something like a CURT Helux pin box.

Before diving into the adjustment itself, it helps to gather the right tools so you can work efficiently and safely. Each item plays a specific role in making sure the pin box can be repositioned accurately and re-secured with the proper torque.

Adjustable Wrenches or Socket Set

You’ll need these to loosen and tighten the pin box mounting bolts. A socket set offers the best control and leverage, especially when bolts have been under load and need a firm break loose.

Torque Wrench

Once the adjustments are complete, the pin box must be re-torqued to the manufacturer’s exact specifications. A torque wrench makes sure the mounting hardware is tight enough to hold safely—but not overtightened, which can stress threads or brackets.

Grease or Manufacturer-Approved Lubricant

A small amount of the correct lubricant helps you assess movement, reduces friction on moving components, and gives a better read on whether resistance is coming from misalignment or dry contact points.

Safety Gloves and Eye Protection

Metal edges, heavy components, and shifting hardware all present hazards. Gloves protect your hands from cuts and pinch points, while eye protection shields against falling rust flakes, debris, or unexpected movement.

Wheel Chocks and Leveling Blocks

These stabilize the trailer during the adjustment. A fully supported, level trailer removes unnecessary pressure from the pin box, making it significantly easier and safer to reposition.

Pin box adjustments involve heavy components, tight spaces, and hardware that supports thousands of pounds while towing. A few simple precautions go a long way toward keeping the process predictable and safe.

Secure Your Rig

The entire trailer must be stable before loosening anything. Park on level ground, set the parking brake, lower the landing gear, and place wheel chocks at both sides. This keeps the trailer from rolling or leaning while the pin box bolts are loose.

Work With Assistance

A second person makes the job more controlled. They can watch alignment, help support the pin box, or guide you as you move it up or down in the mounting brackets. Even a small shift can be heavy or awkward to manage alone.

Protect Yourself

Wear gloves to keep your grip steady and avoid cuts from sharp edges or old hardware. Eye protection is important whenever you’re looking up at bolts or brackets that may drop dirt or debris as you loosen them.

Take Your Time

Pin boxes are adjusted in small increments. Forcing or rushing the process can lead to uneven alignment, cross-threaded bolts, or a setup that feels “right enough” in the moment but causes problems later. Make each adjustment deliberately.

Adjusting a 5th wheel pin box isn’t complicated, but it does require a methodical approach. Small changes in height or alignment can make a big difference in how your hitch connects, carries weight, and releases after a trip. The following steps walk you through the entire process, from unhooking the trailer to verifying the final setup, so you can make accurate adjustments without guesswork. Each step builds on the last to help you create a safer, smoother, and more predictable towing experience.

Step 1: Disconnect the Trailer

Start by parking your trailer on level, solid ground and placing wheel chocks behind the tires to prevent any movement. With the trailer stabilized, disconnect the pin box from the hitch by unlocking the jaws and slowly pulling the tow vehicle forward. If needed, lower the trailer slightly to fully release pressure from the connection. This ensures you’re working with a safely supported, unhitched trailer before making any adjustments.

• Ensure the trailer is on level ground and chocked

• Disconnect the pin box from the hitch. Carefully lower the trailer if necessary

Step 2: Inspect the Pin Box

Before making any changes, take a close look at the entire pin box assembly. Check for visible signs of wear such as cracks, rust, loose hardware, or uneven surfaces that may affect alignment. Lightly lubricate any moving components using a grease recommended by your pin box manufacturer. This inspection helps you identify issues early and ensures smoother movement when adjusting or reconnecting the hitch.

• Look for signs of wear, cracks, or rust

• Lubricate moving parts lightly with manufacturer-approved grease

Step 3: Adjust the Height

Most 5th wheel pin boxes are designed with multiple height settings to help you achieve the correct trailer-to-truck alignment. Use your wrench or socket set to loosen the mounting bolts while supporting the pin box’s weight. Carefully raise or lower the pin box until it matches your trailer’s proper height requirements, ensuring level towing and adequate bed-rail clearance. Once positioned, torque the mounting bolts to the manufacturer’s exact specifications to lock the adjustment in place safely.

• Most pin boxes have adjustable height settings for better clearance and alignment

• Loosen the mounting bolts using your wrench or socket set

• Adjust the pin box up or down according to your trailer’s specifications

• Torque the bolts to the manufacturer’s recommended settings

Step 4: Check Jaw Alignment

With the pin box adjusted, inspect the hitch jaws on your tow vehicle to ensure they open and close smoothly around the kingpin. Misalignment or stiff movement can lead to binding or poor coupling. Adjust the jaw or handle tension according to your hitch’s instructions so the connection feels snug and secure without excessive resistance. This step is crucial for consistent hitching and unhitching performance.

• Ensure the hitch jaws open and close smoothly

• Adjust the jaw or handle tension as needed for a snug fit without binding

Step 5: Test Your Connection

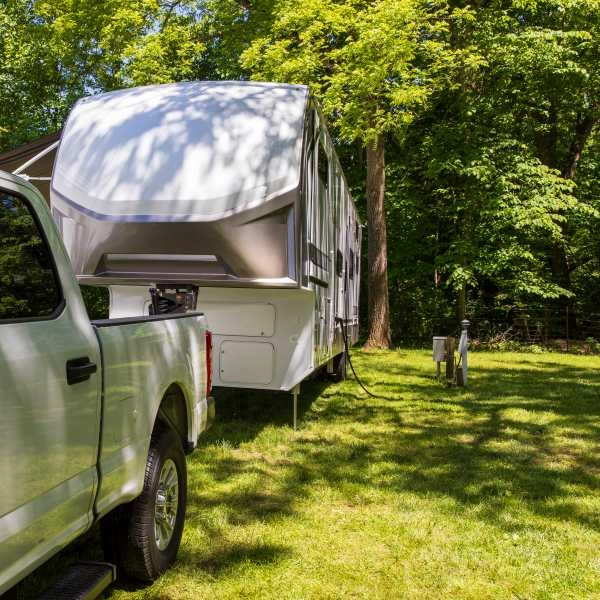

Reconnect the trailer to your truck by slowly backing under the pin box and allowing the kingpin to seat properly inside the hitch jaws. Listen and watch for the latch mechanism to engage fully, confirming a secure connection. Once connected, test the release to ensure it doesn’t require excessive force. A smooth latch and release indicate your pin box height and alignment are correctly set.

• Reconnect the trailer to the truck hitch

• Slowly back the truck under the trailer to check alignment

• Ensure the hitch latches securely and releases without excessive force

Step 6: Final Safety Check

Before hitting the road, walk through a final safety review to ensure everything is functioning properly. Confirm that all bolts are torqued to spec, verify free movement between the hitch and pin box, and check that there’s no binding during turns or vertical articulation. Perform a short, low-speed test in a controlled area to make sure your adjustments feel stable and predictable. This last step ensures safe towing and helps catch any issues before you’re fully loaded and on the highway.

• Double-check that all bolts are torqued properly

• Verify the pin box and hitch move freely and aren’t binding

• Test the setup in a controlled area before hitting the road

Even with careful adjustments and routine maintenance, there are times when a 5th wheel pin box or hitch setup needs more than a DIY tune-up. These components handle massive towing forces, and even small alignment issues or unnoticed wear can create safety risks on the road. If something feels off, continues to bind, or shows signs of deeper mechanical problems, it’s worth getting a trained technician involved. Professional service ensures your connection system is inspected with the right tools, measured to exact specifications, and corrected before a minor issue turns into a major failure. Here's when it makes sense to call in an expert.

The pin box is damaged or shows cracks

If you spot visible cracks, dents, rust, or other structural damage on your pin box, it’s a clear warning sign that the component may be compromised. Continuing to tow with a weakened pin box can put extreme stress on your trailer and hitch, potentially leading to failure while on the road. Damage like this is not something to attempt fixing at home—professional technicians can assess the extent of wear, determine whether repairs are safe, or recommend a replacement to protect both your vehicle and trailer.

You notice persistent binding even after adjustment

Sometimes, even after carefully adjusting the pin box and hitch, the connection may still bind, stick, or feel uneven when hitching or unhitching. Persistent binding can indicate deeper alignment issues, worn components, or fatigue in the pin box itself. Ignoring it can accelerate wear on your hitch and trailer, create unsafe towing conditions, or even damage your truck bed. A professional service provider can pinpoint the root cause, make precise corrections, and ensure your setup operates smoothly every time.

You’re unsure about torque specifications or alignment procedures

Pin boxes and hitches require precise torque settings and exact alignment to function safely. If you’re uncertain about the correct bolt torque, mounting procedures, or how to measure proper pin box height, it’s better to call in a professional. Incorrect torque or misalignment can lead to stripped bolts, unstable towing, or premature wear of your components. Certified technicians have the experience and tools to set your pin box to exact specifications, giving you confidence and safety on every trip.

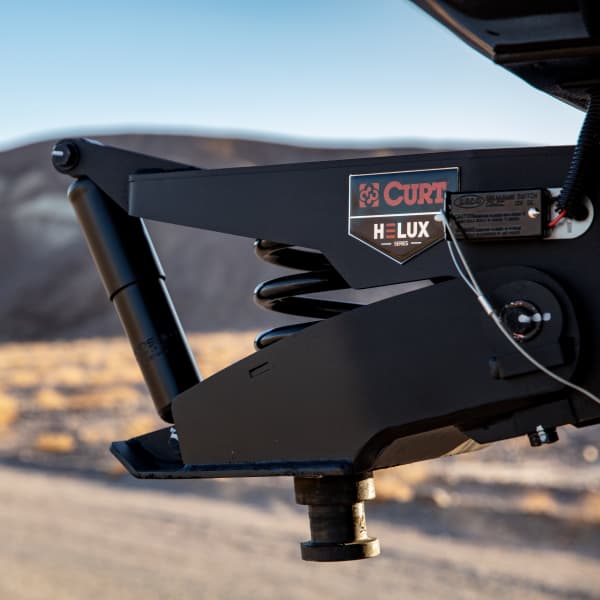

If you’ve been repeatedly adjusting your pin box, struggling with binding, or dealing with uneven wear, it may be time to think beyond temporary fixes. The CURT Helux pin box is engineered as a long-term solution, designed to eliminate the common headaches that come with traditional 5th wheel setups. Its advanced suspension system absorbs road shock, reduces stress on both your truck and trailer, and keeps your connection stable even on rough roads or during heavy towing.

The Helux isn’t just about smoother movement. It’s about protecting your investment. By minimizing wear on your trailer and hitch, it extends the life of your equipment and reduces costly maintenance over time. Installation is straightforward, and once in place, it provides a reliable, consistent connection that feels secure every time you hitch up.

Upgrading to a Helux also saves time and frustration. No more repeated tweaks, sticky jaws, or wondering if your hitch will release properly. Instead, you get a smoother, more confident towing experience from the moment you connect to the road. For RV owners ready to stop fighting with their 5th wheel and start enjoying safer, easier towing, the CURT Helux is an excellent choice.
